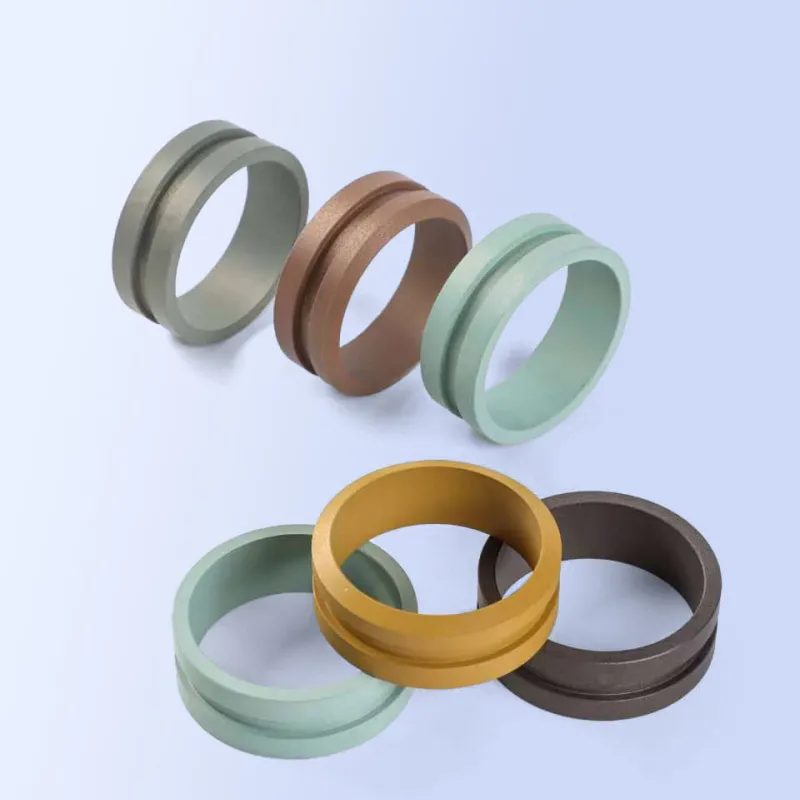

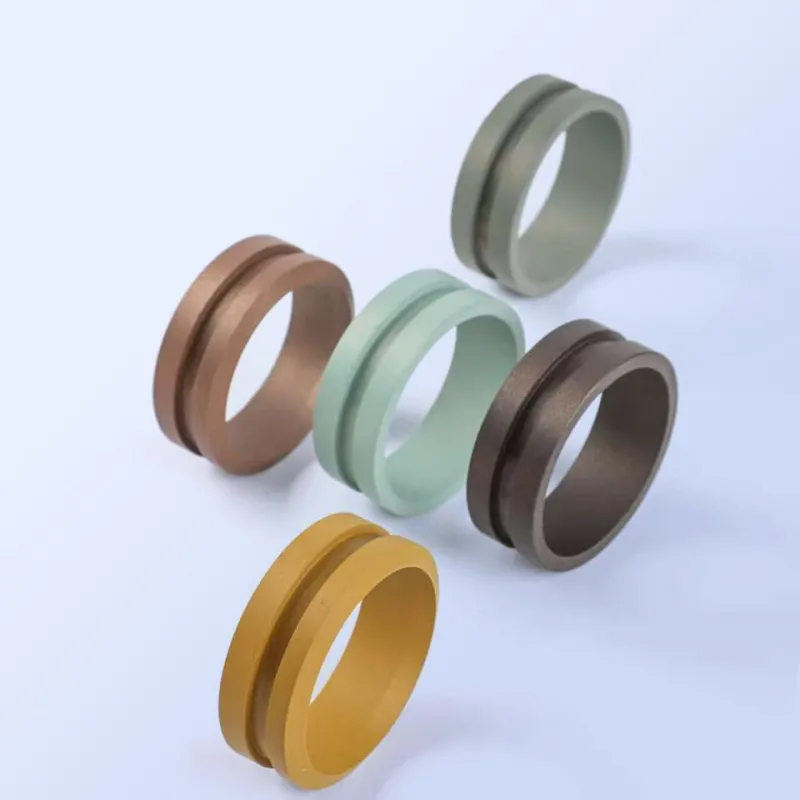

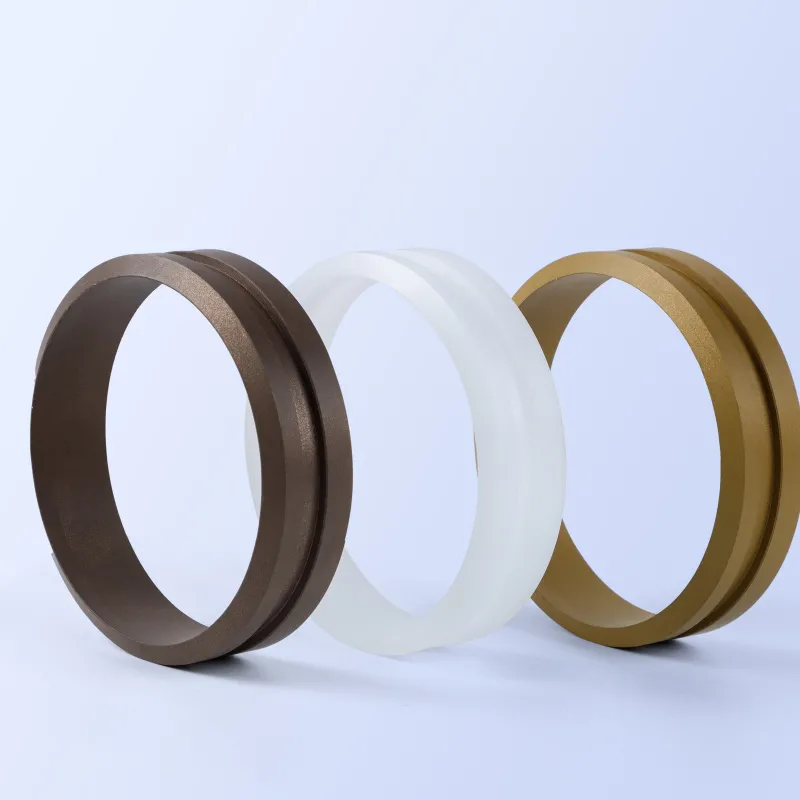

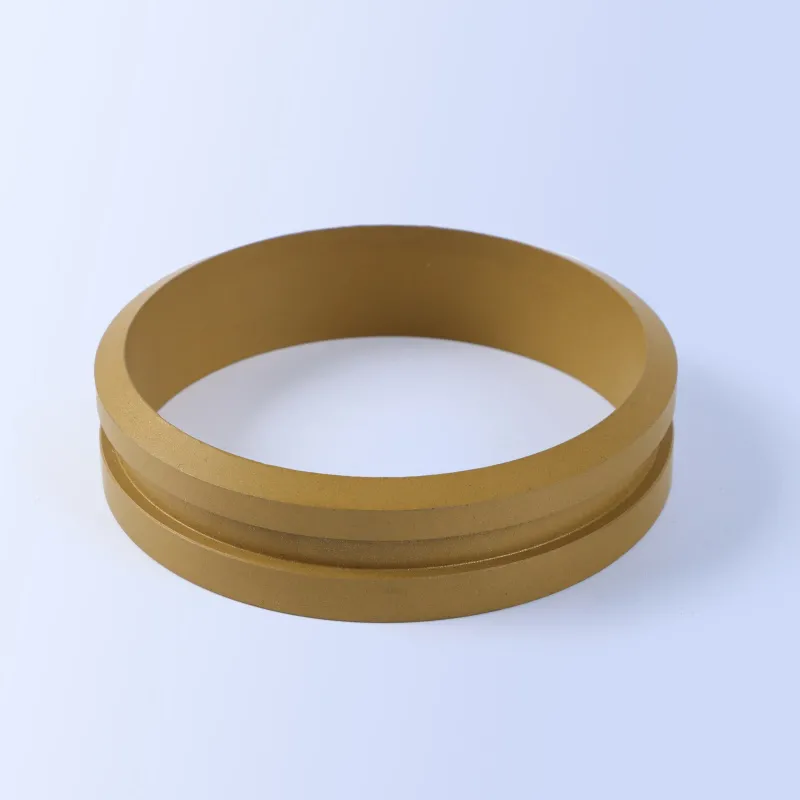

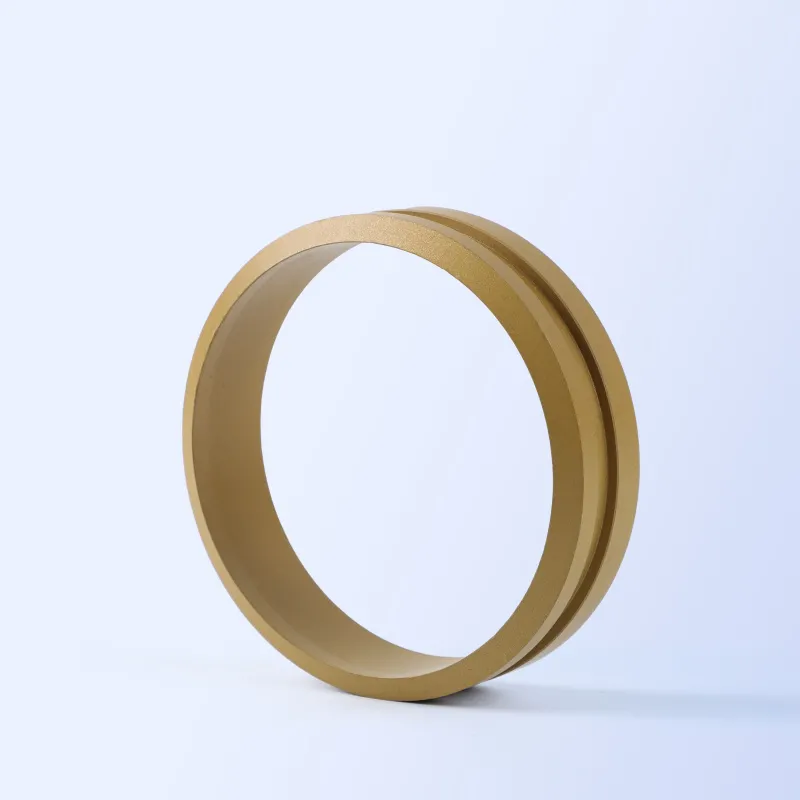

Guide Ring
Application Range
Guide sleeve used for piston lever, to support and guide the piston lever, as well as dust-proof. Please refer to the standards of FAI series of Hunger Company when designing.
Features
Being firm and easy forinstallation
Matching with metal/plastic material to avoid the phenomenon of"blocking"and"seizing"
Working Conditions
| Speed | Pressure Range | Temperature Range | Media | Available Diameter Range |
| 3m/s | - | -55℃ +225℃ | Hydraulic oil, emulsion and water | 28-200mm |

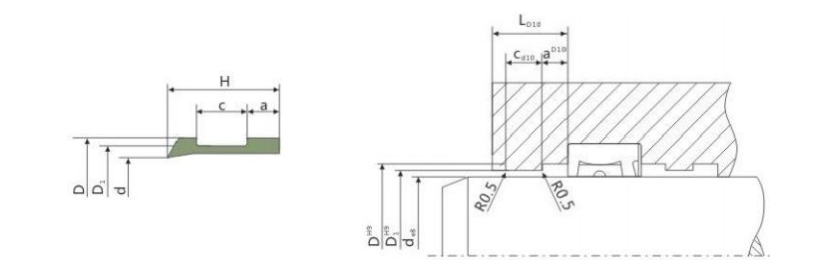

Specification Table
| Order No. | d | D | D₁ | H | L | c | a |
| MAIS-41-28 | 28 | 34 | 31 | 19 | 17 | 6 | 6.5 |
| MAIS-41-30 | 30 | 36 | 33 | 19 | 17 | 6 | 6.5 |
| MAIS-41-36 | 36 | 42 | 39 | 19 | 17 | 6 | 6.5 |
| MAIS-41-40 | 40 | 46 | 43 | 19 | 17 | 6 | 6.5 |
| MAIS-41-42 | 42 | 48 | 45 | 19 | 17 | 6 | 6.5 |
| MAIS-41-45 | 45 | 51 | 48 | 19 | 17 | 6 | 6.5 |
| MAIS-41-50 | 50 | 56 | 53 | 19 | 17 | 6 | 6.5 |
| MAIS-41-55 | 55 | 61 | 58 | 19 | 17 | 6 | 6.5 |
| MAIS-41-56 | 56 | 62 | 59 | 19 | 17 | 6 | 6.5 |
| MAIS-41-60 | 60 | 70 | 65 | 24 | 21 | 7 | 8.5 |
| MAIS-41-63 | 63 | 73 | 68 | 24 | 21 | 7 | 8.5 |
| MAIS-41-65 | 65 | 75 | 70 | 24 | 21 | 7 | 8.5 |
| MAIS-41-70 | 70 | 80 | 75 | 24 | 21 | 7 | 8.5 |
| MAIS-41-72 | 72 | 82 | 77 | 24 | 21 | 7 | 8.5 |
| MAIS-41-75 | 75 | 85 | 80 | 24 | 21 | 7 | 8.5 |
| MAIS-41-80 | 80 | 90 | 85 | 24 | 21 | 7 | 8.5 |
| MAIS-41-85 | 85 | 95 | 90 | 24 | 21 | 7 | 8.5 |
| MAIS-41-90 | 90 | 100 | 95 | 24 | 21 | 7 | 8.5 |
| MAIS-41-95 | 95 | 105 | 100 | 24 | 21 | 7 | 8.5 |
| MAIS-41-100 | 100 | 110 | 105 | 24 | 21 | 7 | 8.5 |
| MAIS-41-105 | 105 | 115 | 110 | 24 | 21 | 7 | 8.5 |
| MAIS-41-110 | 110 | 120 | 115 | 24 | 21 | 7 | 8.5 |
| MAIS-41-115 | 115 | 125 | 120 | 24 | 21 | 7 | 8.5 |
| MAIS-41-120 | 120 | 130 | 125 | 24 | 21 | 7 | 8.5 |
| MAIS-41-125 | 125 | 135 | 130 | 24 | 21 | 7 | 8.5 |
| MAIS-41-130 | 130 | 140 | 135 | 24 | 21 | 7 | 8.5 |
| MAIS-41-140 | 140 | 150 | 145 | 24 | 21 | 7 | 8.5 |
| MAIS-41-150 | 150 | 162 | 156 | 35 | 31 | 15 | 10 |
| MAIS-41-160 | 160 | 172 | 166 | 35 | 31 | 15 | 10 |
| MAIS-41-165 | 165 | 177 | 171 | 35 | 31 | 15 | 10 |
| MAIS-41-170 | 170 | 182 | 176 | 35 | 31 | 15 | 10 |
| MAIS-41-180 | 180 | 192 | 186 | 35 | 31 | 15 | 10 |
| MAIS-41-190 | 190 | 202 | 196 | 35 | 31 | 15 | 10 |
| MAIS-41-200 | 200 | 212 | 206 | 35 | 31 | 15 | 10 |
| MAIS-41-220 | 220 | 232 | 226 | 35 | 31 | 15 | 10 |
| MAIS-41-225 | 225 | 237 | 231 | 35 | 31 | 15 | 10 |
| MAIS-41-240 | 240 | 252 | 246 | 35 | 31 | 15 | 10 |
| MAIS-41-250 | 250 | 262 | 256 | 35 | 31 | 15 | 10 |
| MAIS-41-260 | 260 | 272 | 266 | 35 | 31 | 15 | 10 |
| MAIS-41-280 | 280 | 292 | 286 | 35 | 31 | 15 | 10 |
| MAIS-41-290 | 290 | 302 | 296 | 35 | 31 | 15 | 10 |
| MAIS-41-300 | 300 | 312 | 306 | 35 | 31 | 15 | 10 |
| MAIS-41-320 | 320 | 332 | 326 | 35 | 31 | 15 | 10 |
| MAIS-41-350 | 350 | 362 | 356 | 35 | 31 | 15 | 10 |
| MAIS-41-360 | 360 | 372 | 366 | 35 | 31 | 15 | 10 |
| MAIS-41-380 | 380 | 392 | 386 | 35 | 31 | 15 | 10 |
| MAIS-41-400 | 400 | 412 | 406 | 35 | 31 | 15 | 10 |
| MAIS-41-415 | 415 | 427 | 421 | 35 | 31 | 15 | 10 |
| MAIS-41-420 | 420 | 432 | 426 | 35 | 31 | 15 | 10 |
| MAIS-41-425 | 425 | 437 | 431 | 35 | 31 | 15 | 10 |
| MAIS-41-450 | 450 | 462 | 456 | 35 | 31 | 15 | 10 |
| MAIS-41-480 | 480 | 492 | 486 | 35 | 31 | 15 | 10 |
| MAIS-41-500 | 500 | 512 | 506 | 35 | 31 | 15 | 10 |
| MAIS-41-560 | 560 | 572 | 566 | 35 | 31 | 15 | 10 |
| MAIS-41-600 | 600 | 612 | 606 | 35 | 31 | 15 | 10 |
| MAIS-41-630 | 630 | 642 | 636 | 35 | 31 | 15 | 10 |
