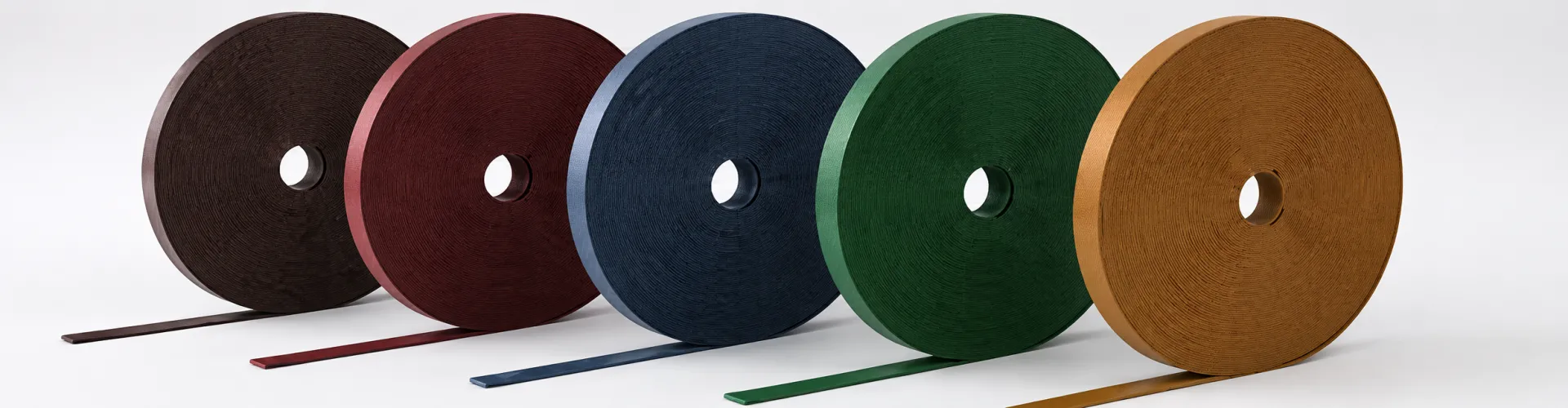

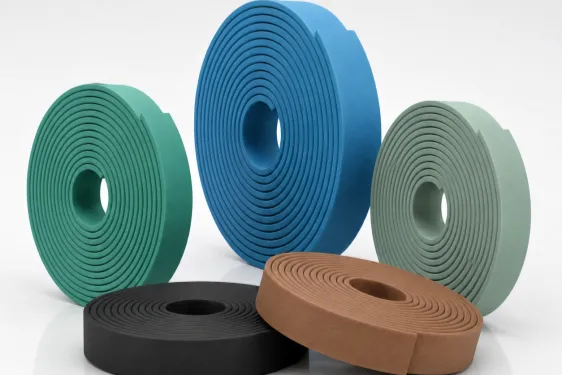

Guide Strip
The function of the guide strip or guide tape is to guide the piston and piston rod of a hydraulic cylinder, as well as to withstand arising side loads. At the same time, it prevents any metal-to-metal contact, which will damage and score the surfaces and eventually cause seal damage, leakage and component damage.

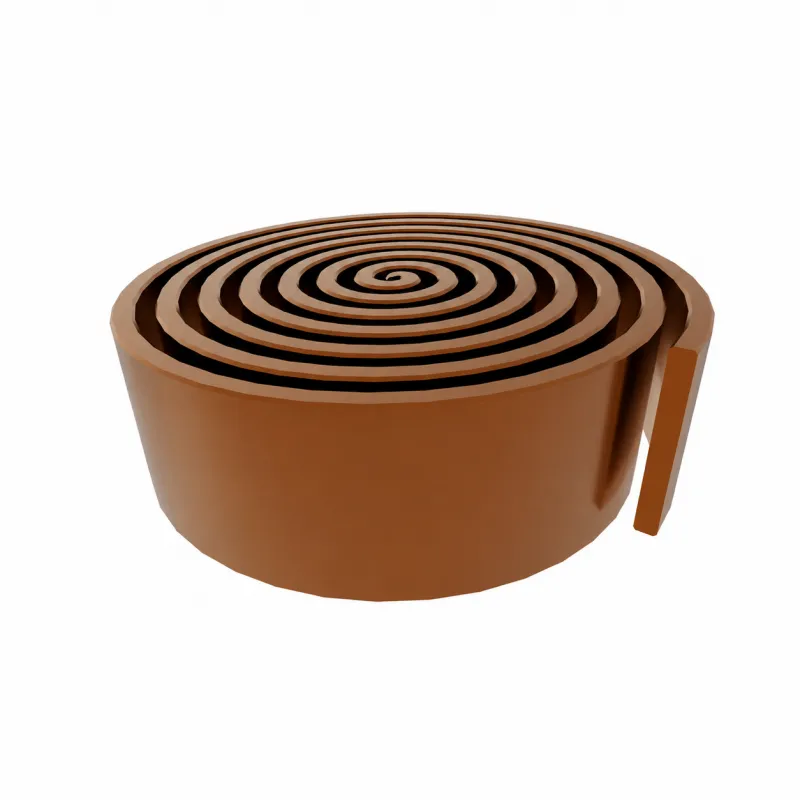

MTGRS Guide Strip
Max pressure
12Mpa
Temp range
-40℃ +120℃
Max speed
0.33m/s

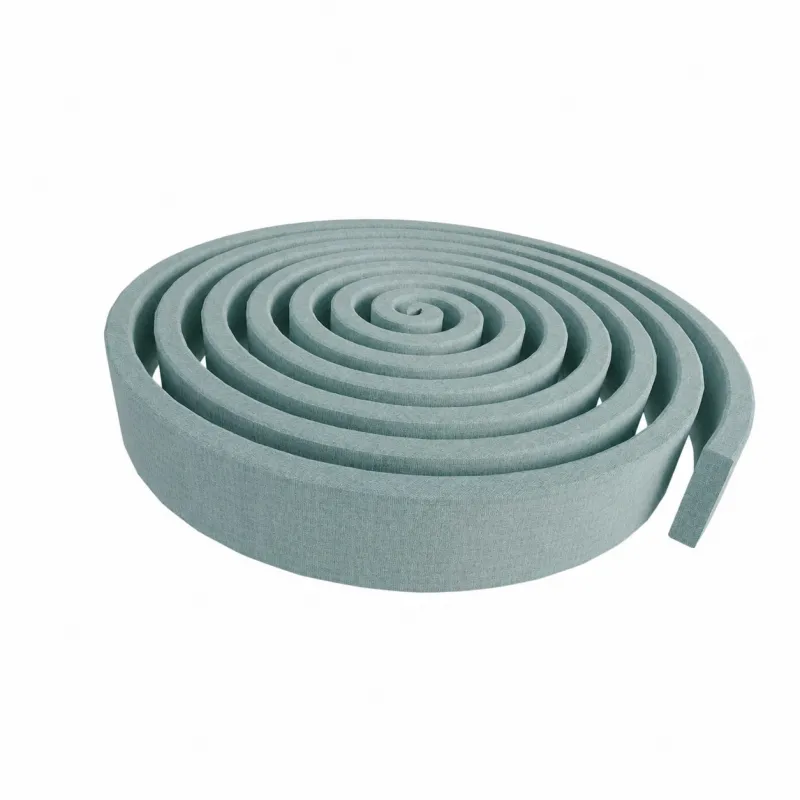

Phenolic Cloth Guide Strip
Max pressure
80Mpa
Temp range
-60℃ +120℃
Max speed
5m/s

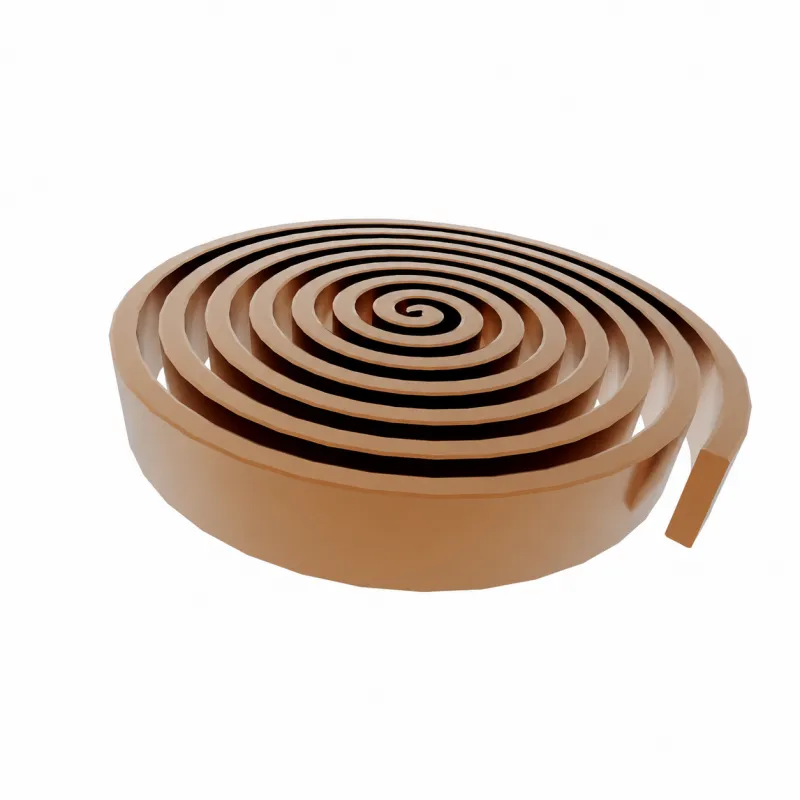

GST Guide Strip
Max pressure
63MPa
Temp range
-180℃ +250℃
Max speed
5m/s
