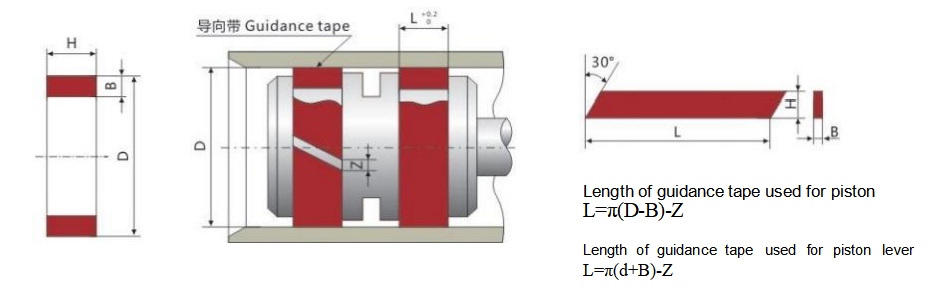

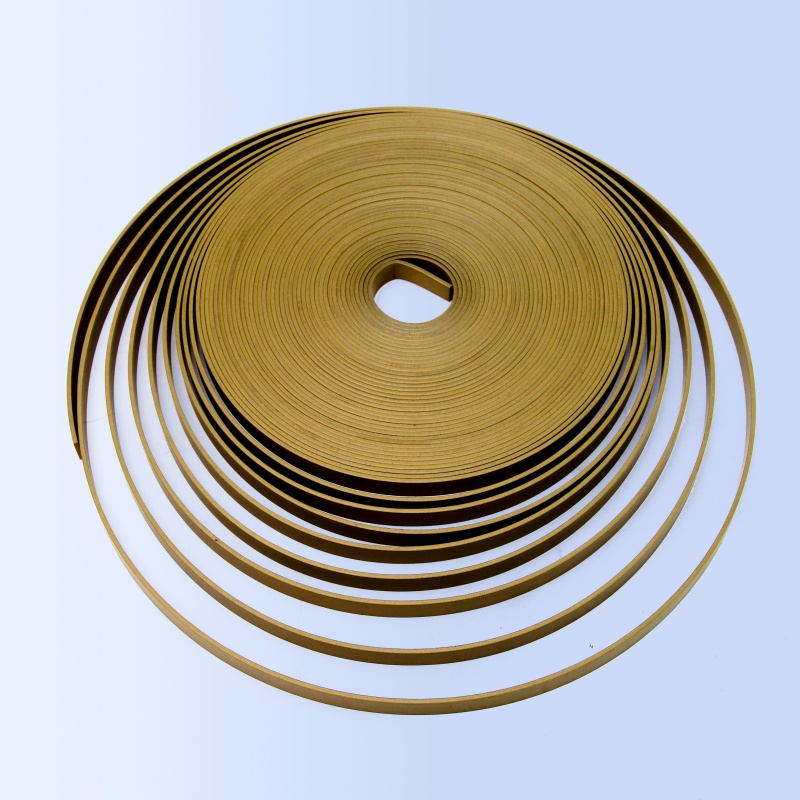

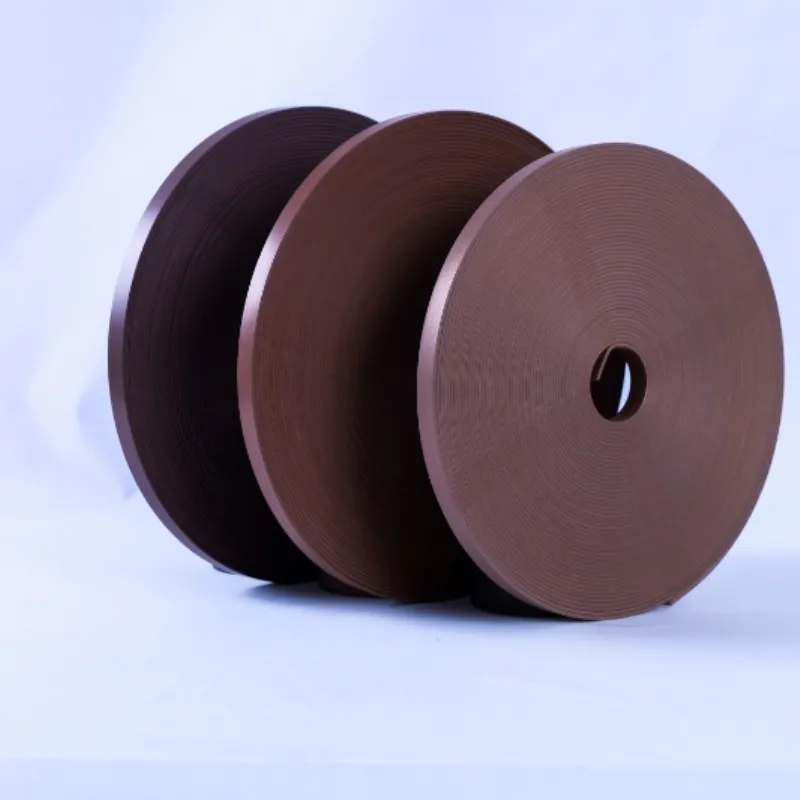

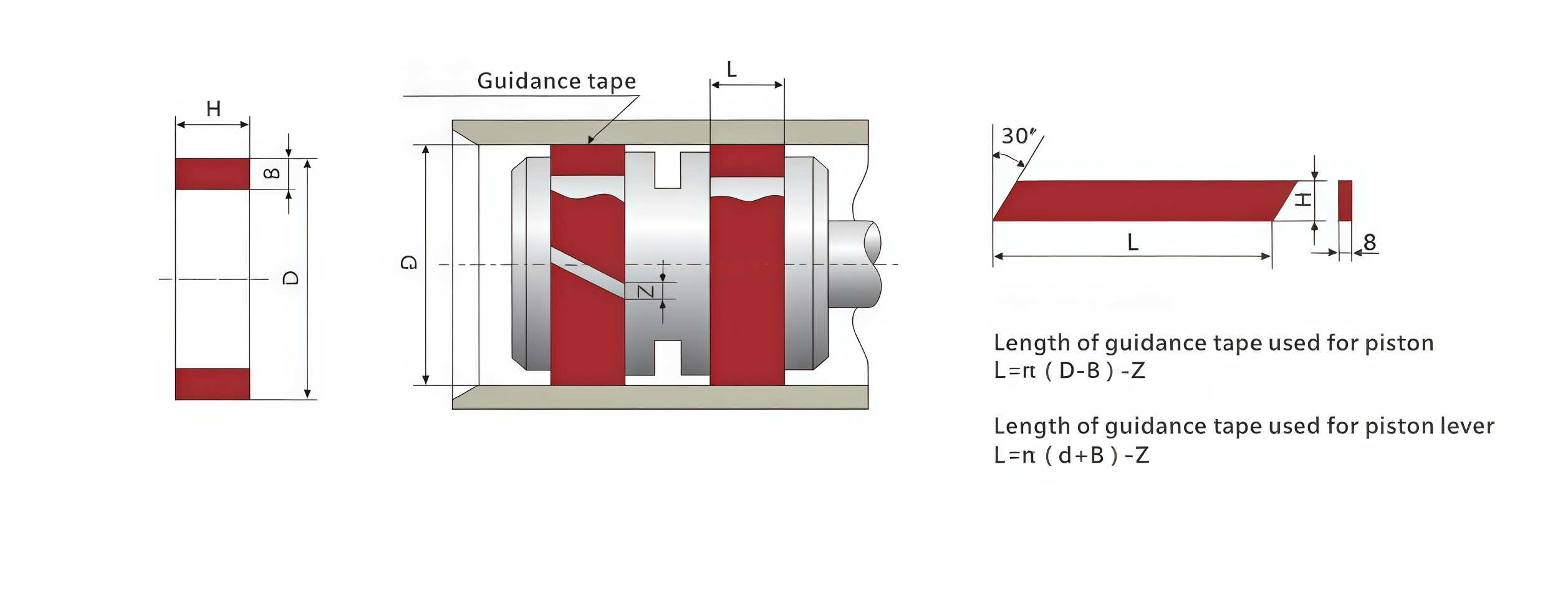

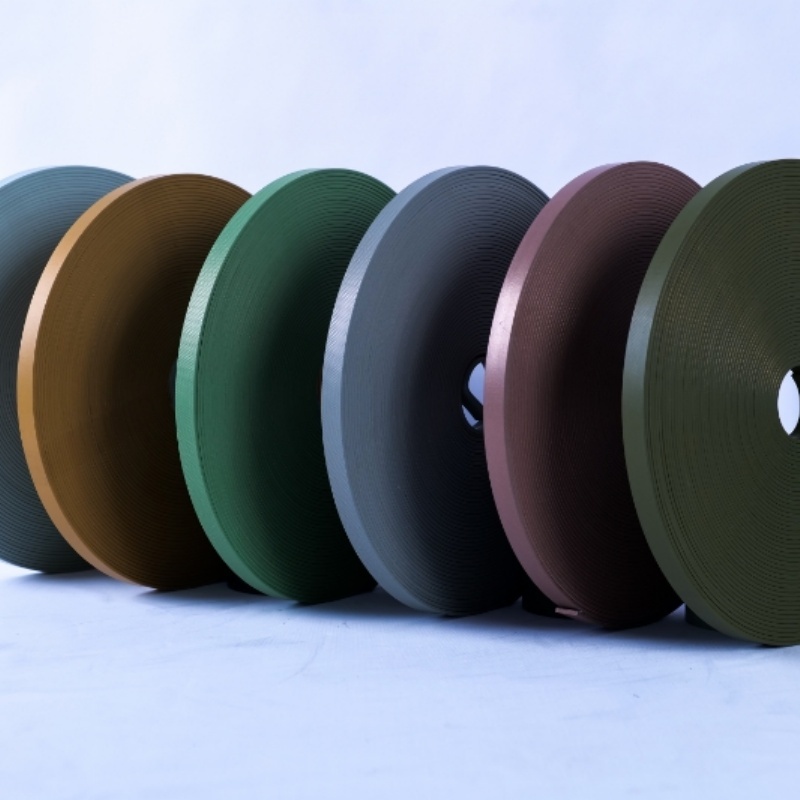

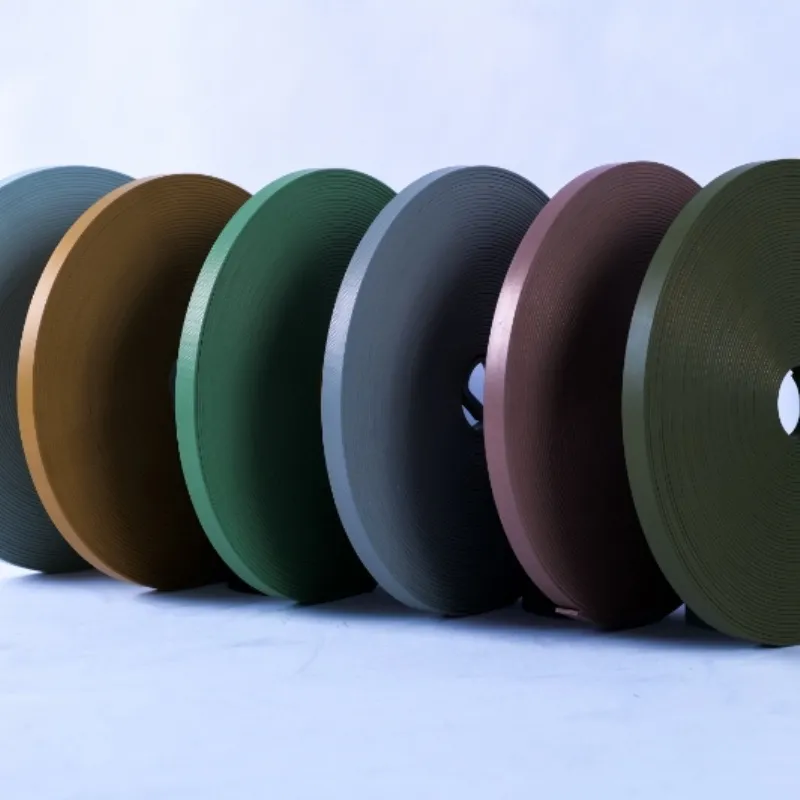

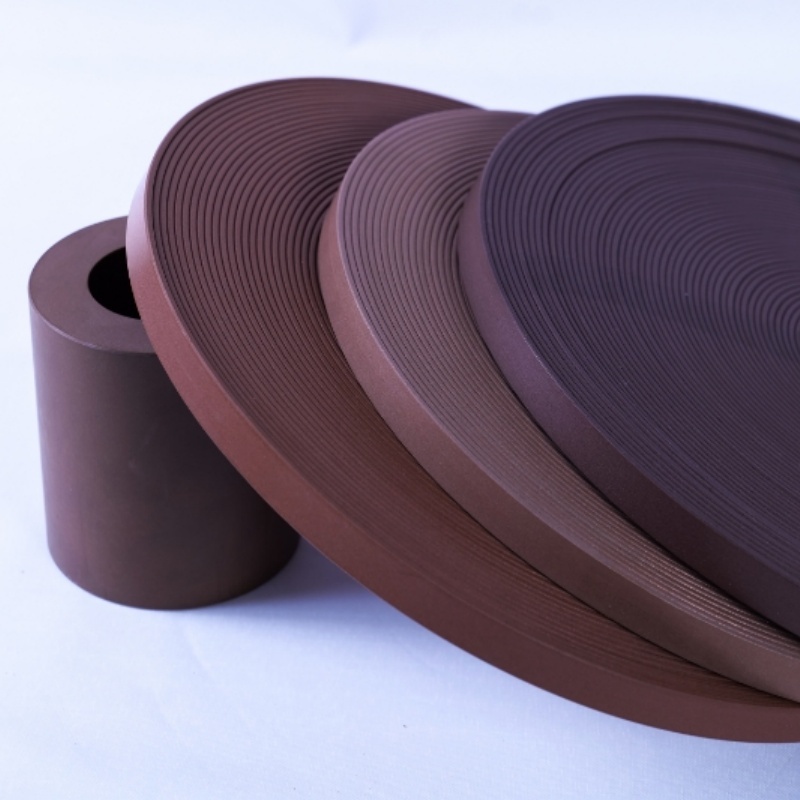

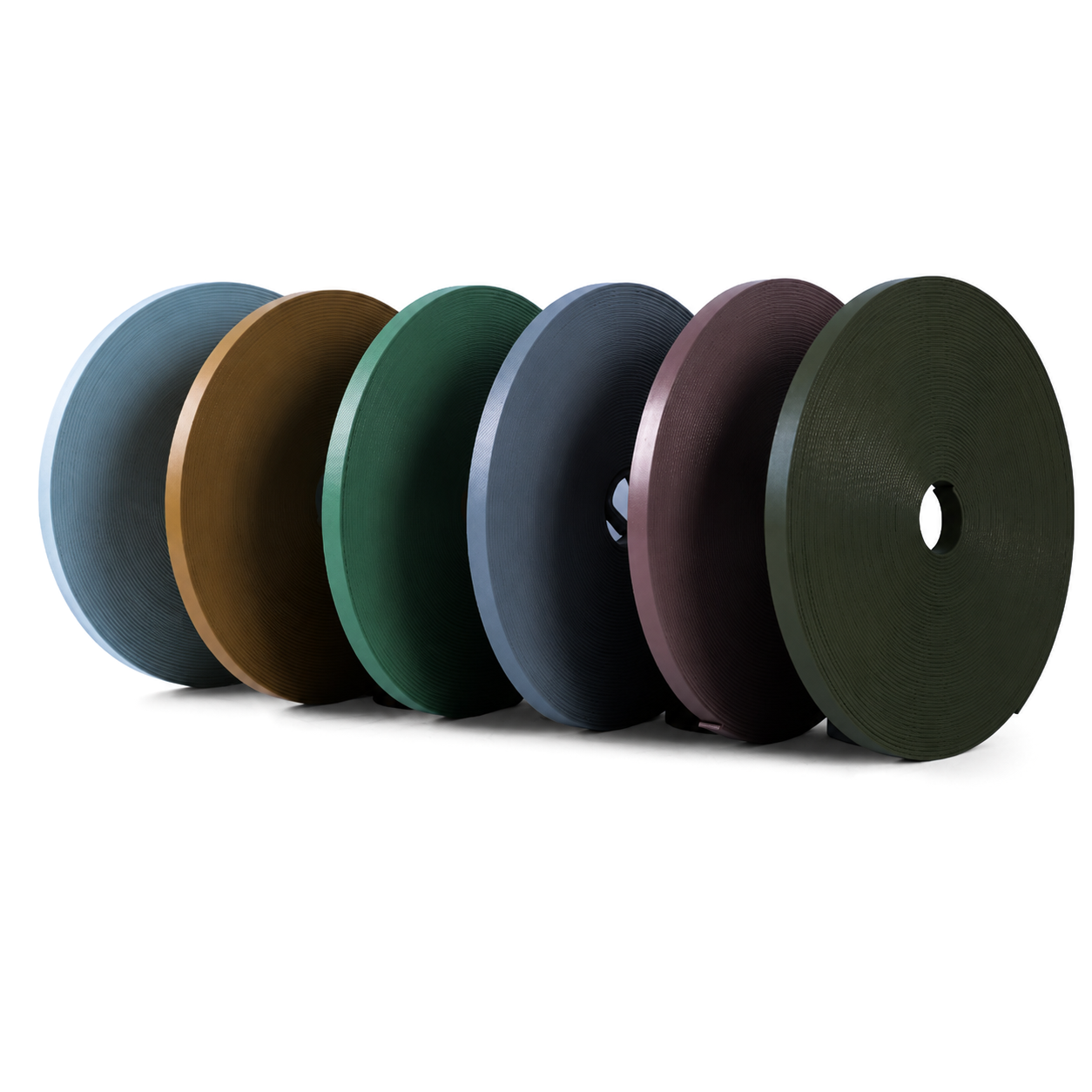

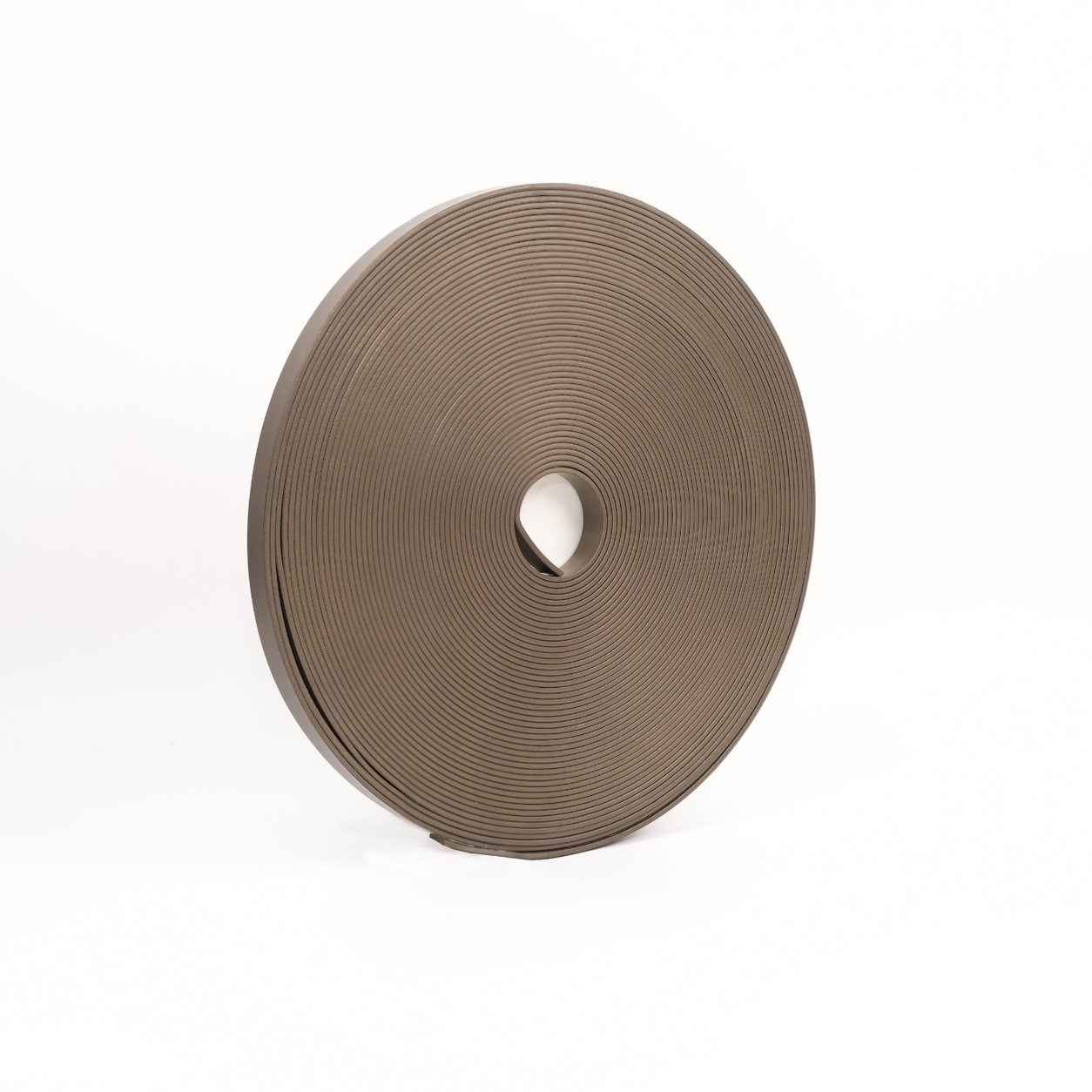

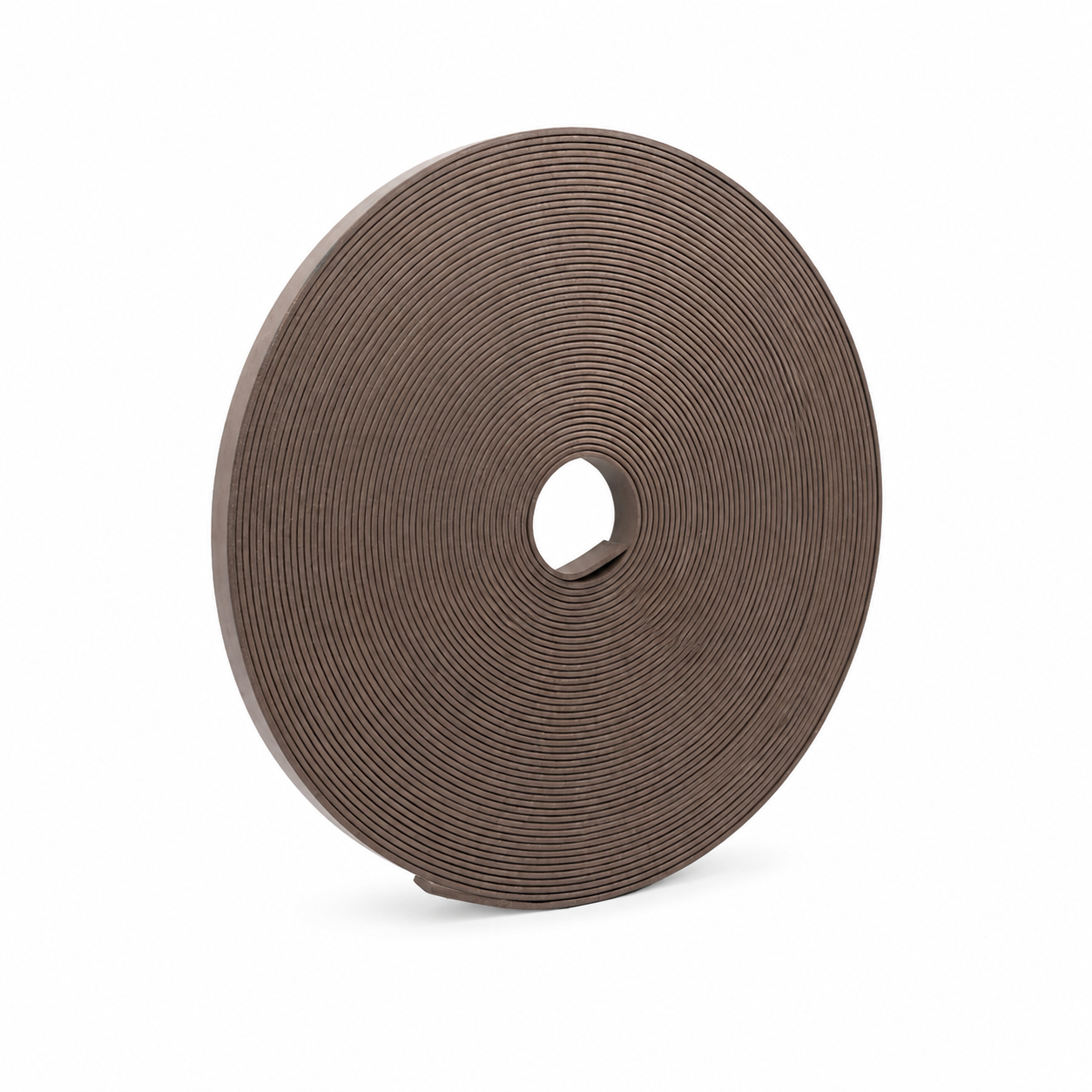

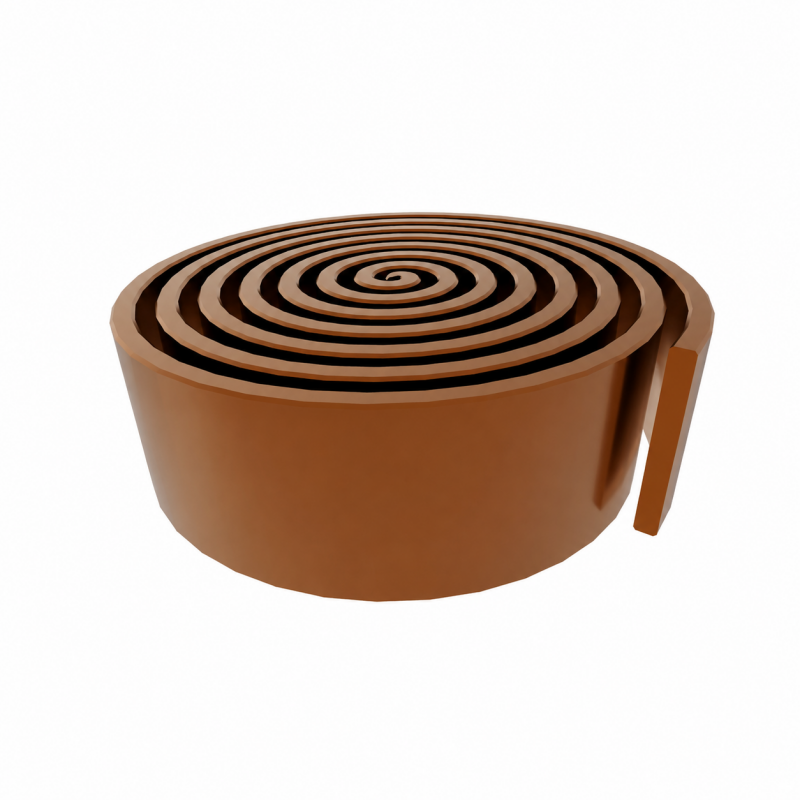

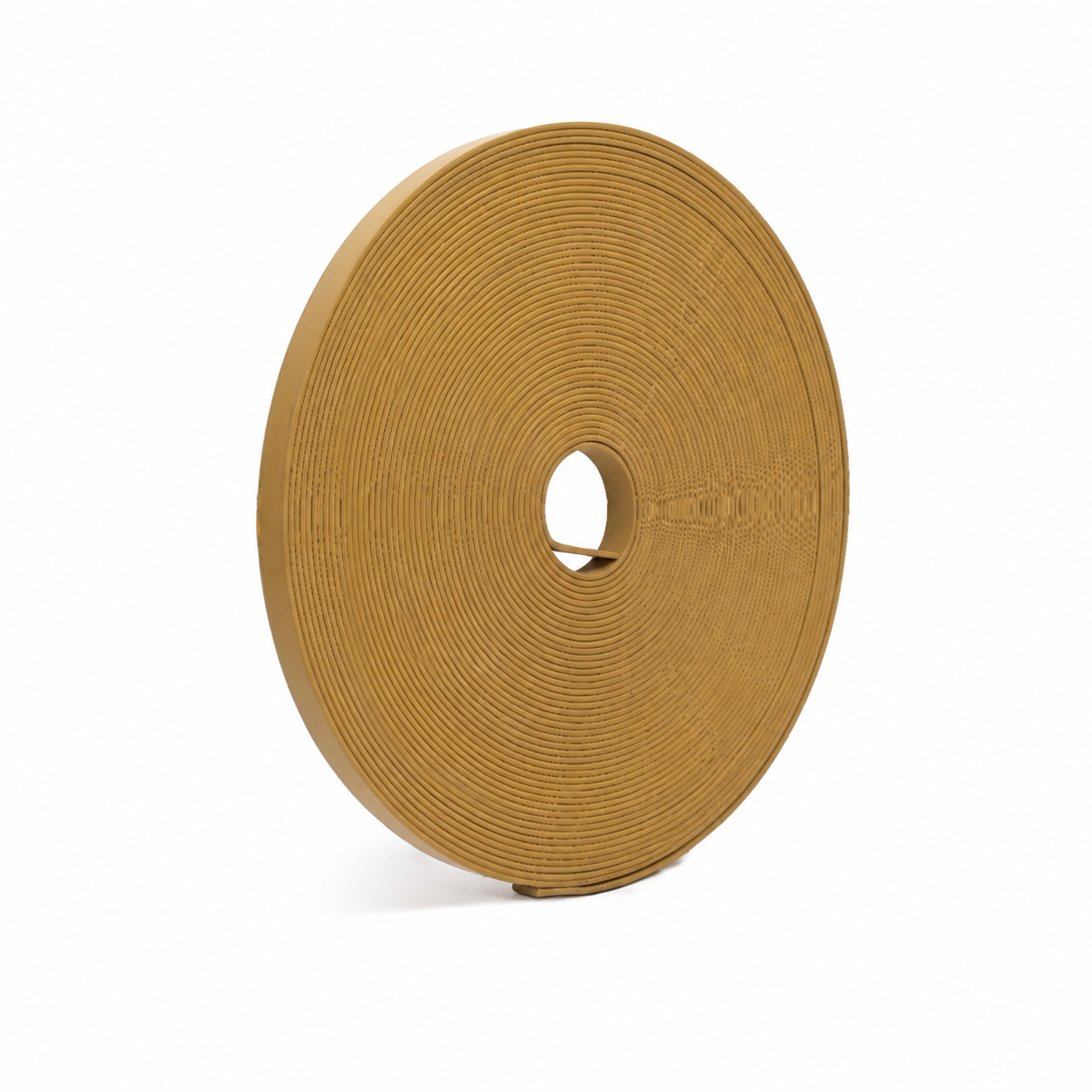

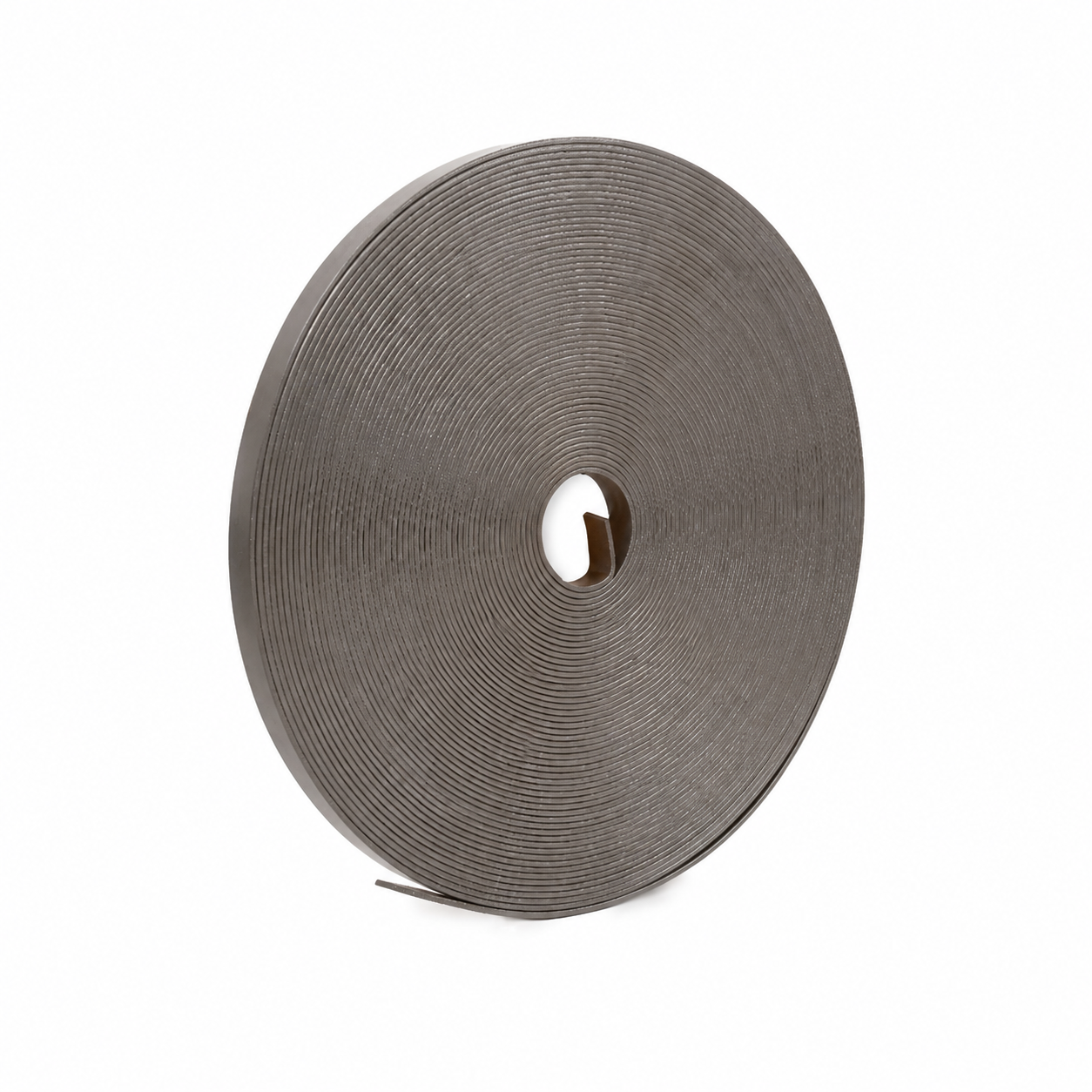

Guide Strip
Product Application
Sealing the piston and piston lever of the reciprocating hydraulic oil cylinder with ultrahigh pressure
Working Conditions
| WorkingTemperature | WorkingPressure | Working Medium | StandardSource | Order Mark | Brief Notes |
| -180℃~+250℃ | ≤63MPa | Hydraulic oil and compressed air | GB/T15242.2-94 | MAIS-07-10×2.5 | F₄ 10×2.5 |
Specification Table
| Order No. | H | B | ||||
| MAIS-07-2 | 2 | 1 | 1.5 | 2 | 2.5 | 2.5 |
| MAIS-07-3 | 3 | 1 | 1.5 | 2 | 2.5 | 2.5 |
| MAIS-07-4 | 4 | 1 | 1.5 | 2 | 2.5 | 2.5 |
| MAIS-07-5 | 5 | 1 | 1.5 | 2 | 2.5 | 2.5 |
| MAIS-07-6 | 6 | 1 | 1.5 | 2 | 2.5 | 3 |
| MAIS-07-8 | 8 | 1 | 1.5 | 2 | 2.5 | 3 |
| MAIS-07-10 | 10 | 2 | 2.5 | 3 | 3.5 | 4 |
| MAIS-07-12 | 12 | 2 | 2.5 | 3 | 3.5 | 4 |
| MAIS-07-15 | 15 | 2 | 2.5 | 3 | 3.5 | 4 |
| MAIS-07-20 | 20 | 2.5 | 3 | 3.5 | 4 | 5 |
| MAIS-07-25 | 25 | 2.5 | 3 | 3.5 | 4 | 5 |
| MAIS-07-30 | 30 | 2.5 | 3 | 3.5 | 4 | 5 |
| MAIS-07-35 | 35 | 2.5 | 3 | 3.5 | 4 | 5 |
| MAIS-07-40 | 40 | 2.5 | 3 | 3.5 | 4 | 5 |
| MAIS-07-45 | 45 | 2.5 | 3 | 3.5 | 4 | 5 |
| MAIS-07-50 | 50 | 2.5 | 3 | 3.5 | 4 | 5 |
| MAIS-07-60 | 60 | 2.5 | 3 | 3.5 | 4 | 5 |
