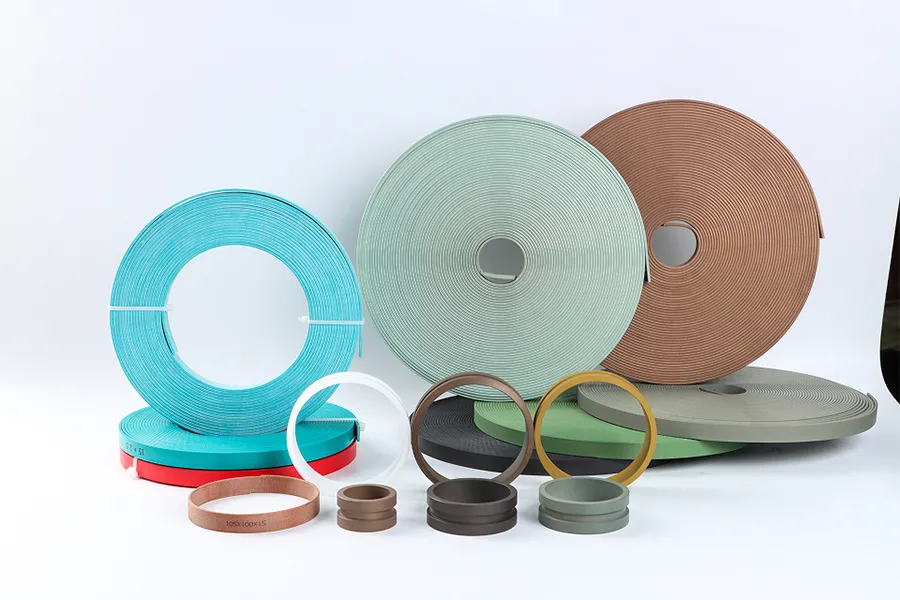

Guide Elements for hydraulic cylinders

Guide Elements is the design of hydraulic wear ring or guide ring. The function of a hydraulic wear ring is to guide the piston and piston rod of a hydraulic cylinder, absorbing transverse forces. At the same time, it prevents metal-to-metal contact, optimizing the performance of the sealing system.

Prodoucts List

MTGRS Guide Strip

Max pressure

12Mpa

Temp range

-40℃ +120℃

Max speed

0.33m/s

Machine Tool Slideway Liner is a wear-resistant lining strip for CNC machines, lathes, milling machines and grinders. Its low-friction surface reduces stick-slip, vibration and guideway wear while supporting smooth travel and accurate positioning. Suitable for new machines and guideway repair.

MTGRS Guide Strip

Max pressure 12Mpa

Temp range -40℃ to +120℃

Max speed 0.33m/s

Phenolic Cloth Guide Strip

Max pressure

80Mpa

Temp range

-60℃ +120℃

Max speed

5m/s

Phenolic Cloth Guide Strip is made from fabric-reinforced phenolic material for high-load hydraulic and pneumatic cylinders. It guides pistons and rods, absorbs radial forces and protects sliding surfaces from direct metal contact. Supplied in rolls for custom cutting.

Phenolic Cloth Guide Strip

Max pressure 80Mpa

Temp range -60℃ to +120℃

Max speed 5m/s

GST Guide Strip

Max pressure

63MPa

Temp range

-180℃ +250℃

Max speed

5m/s

GST Guide Tape supports pistons and piston rods in hydraulic and pneumatic cylinders. Its low-friction, wear-resistant profile carries radial loads and protects metal surfaces from direct contact. Supplied in rolls, it can be cut to fit different groove sizes

GST Guide Strip

Max pressure 63MPa

Temp range -180℃ to +250℃

Max speed 5m/s

GFAI Guide Sleeve

Max pressure

62Mpa

Temp range

-55℃ +225℃

Max speed

3m/s

GFAI Guide Sleeve is a wear-resistant guiding element for hydraulic and pneumatic cylinders. It stabilizes piston and rod movement, absorbs side loads and protects cylinder surfaces from direct metal contact. Standard and custom sizes are available.

GFAI Guide Sleeve

Max pressure 62Mpa

Temp range -55℃ to +225℃

Max speed 3m/s

GFI Guide Ring

Max pressure

62MPa

Temp range

-180℃ +250℃

Max speed

3m/s

GFI Guide Ring is a non-metallic guiding element for hydraulic cylinder rods. Its profile supports radial loads, maintains rod alignment and protects sliding surfaces from direct metal contact. It offers low friction, good wear resistance and reliable operation in demanding hydraulic systems.

GFI Guide Ring

Max pressure 62MPa

Temp range -180℃ to +250℃

Max speed 3m/s

WR Guide Ring

Max pressure

60Mpa

Temp range

-60℃ +120℃

Max speed

5m/s

WR Guide Ring is a wear-resistant guiding element for hydraulic and pneumatic cylinders. Its split profile allows easy installation while supporting radial loads, stabilizing piston or rod movement and protecting metal surfaces from direct contact.

WR Guide Ring

Max pressure 60Mpa

Temp range -60℃ to +120℃

Max speed 5m/s
