Spring Energized Seals

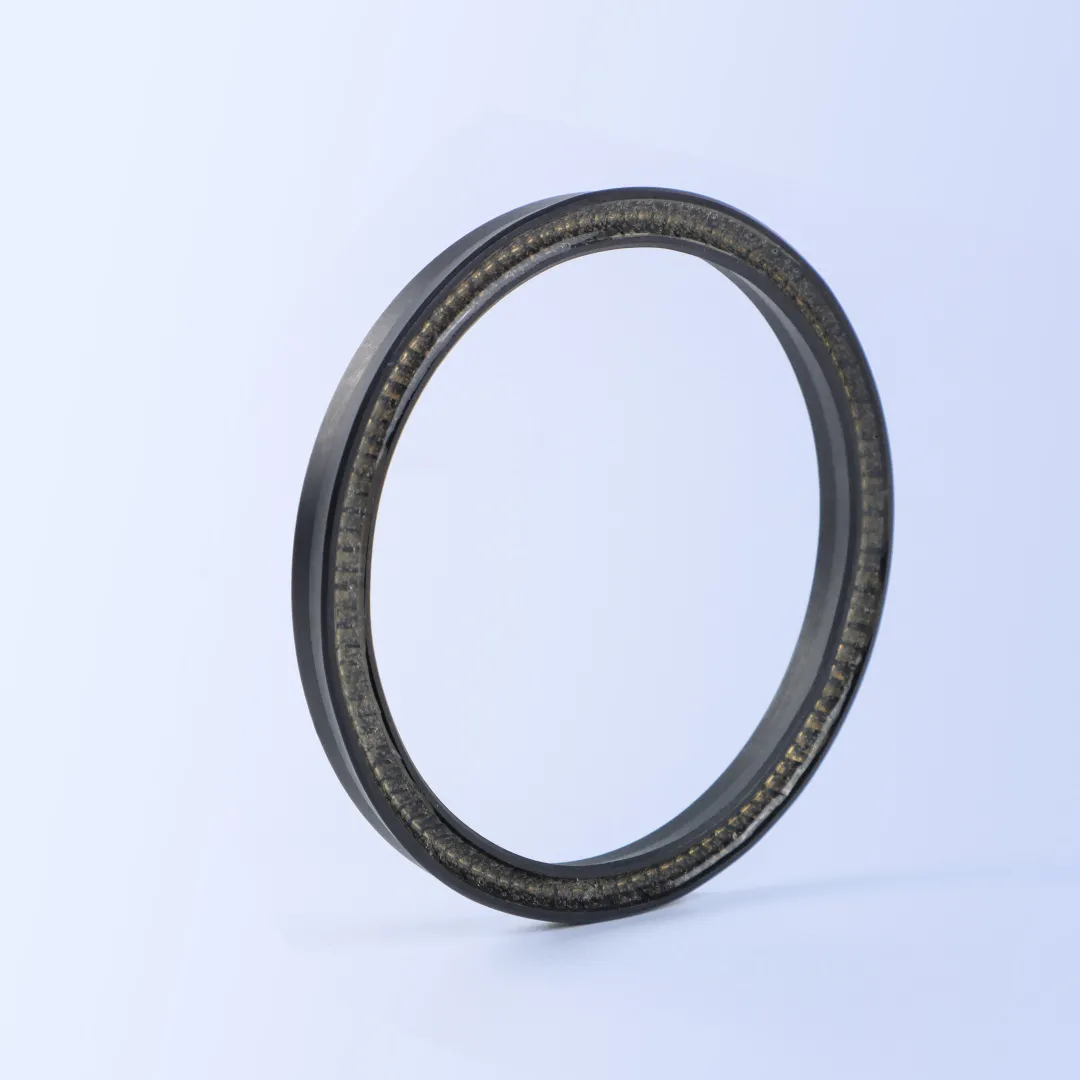

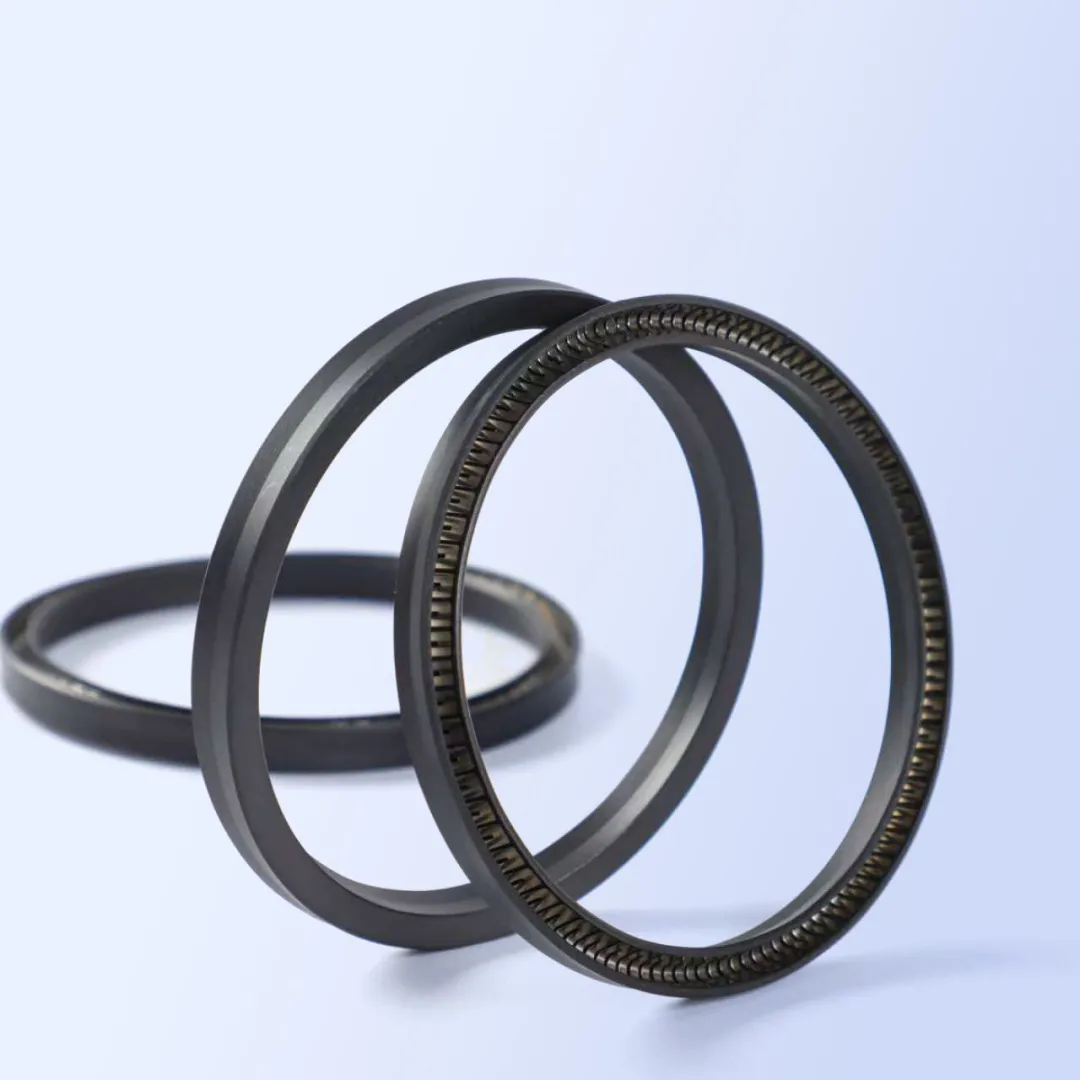

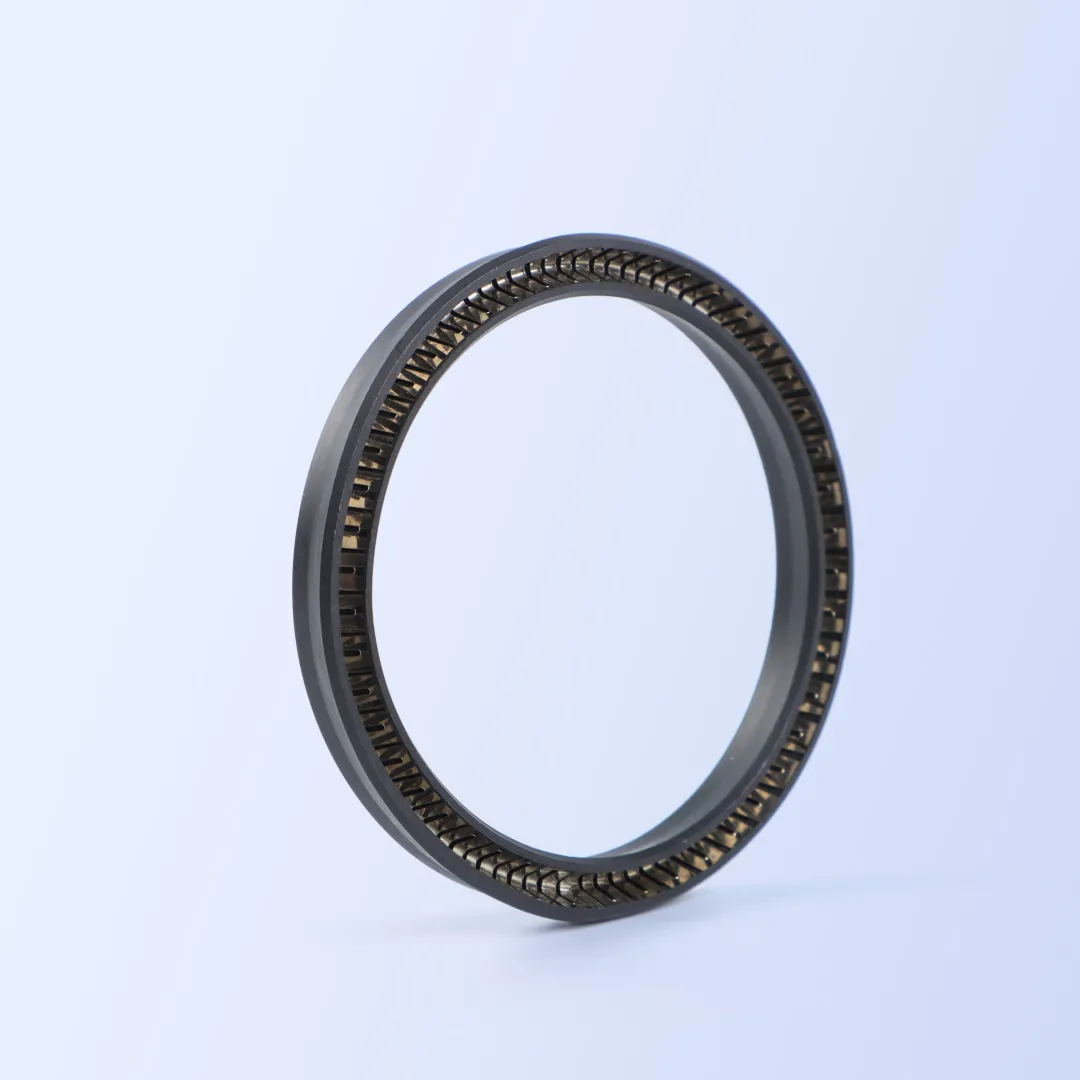

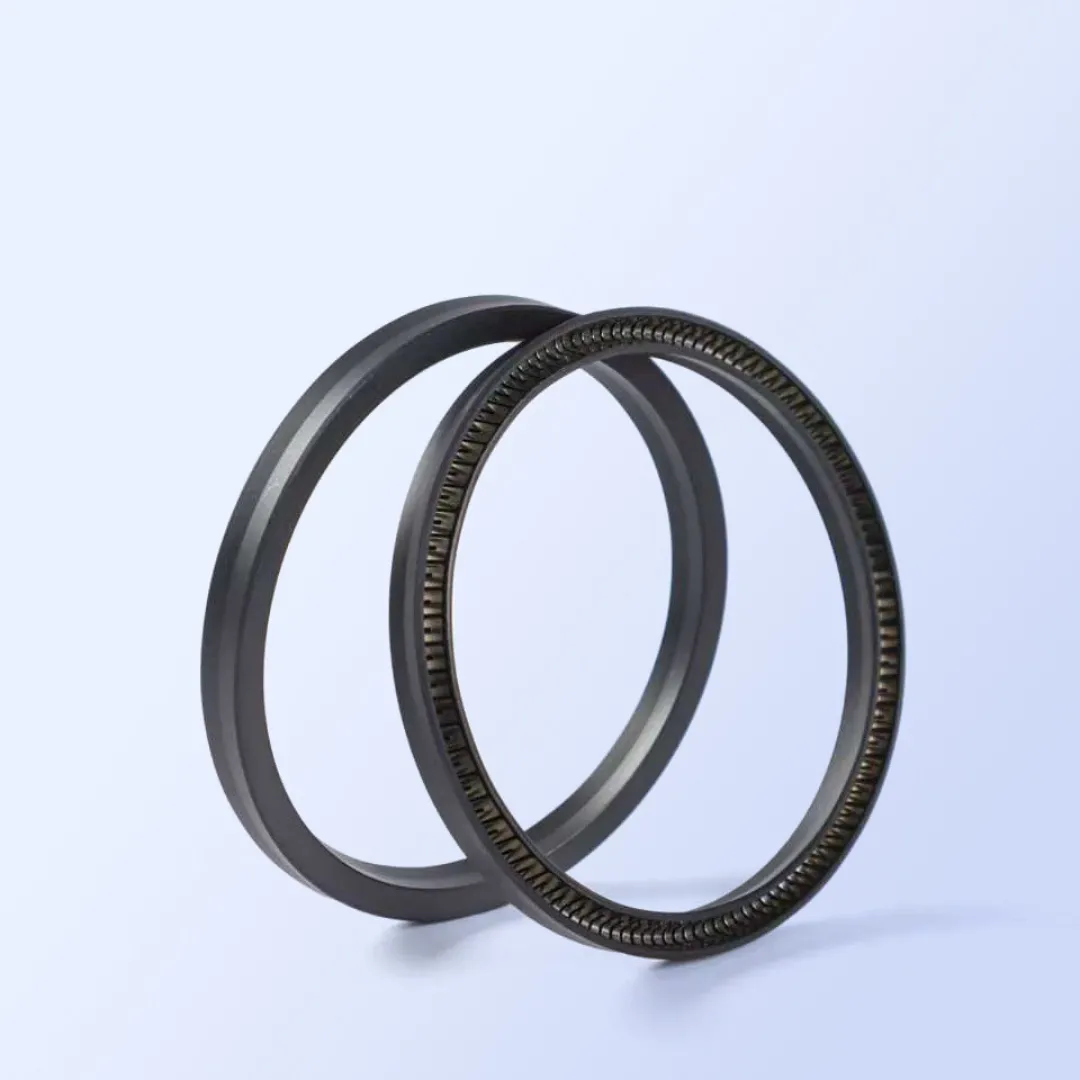

Sealing ring: F-PTFE
Spring: stainless steel
Share:
Application Range
Sealing ring: F-PTFE Spring energized seals for shaft is a kind of sealing used for reciprocating motion of internal sealing. This kind of seal can be applicable for poor working conditions and also be adapted to the requirements of certain special mediums. JRVA sealing is the recommended sealing to use for the requirement of no crawling, chemical resistance and resistance of most mediums, such as valve, pump, separator, brake and batching apparatus.
Please refer to the standards of RVA series of Trelleborg Company and JS series of Parker Company when designing and selecting.
Features
Can be used for reciprocating and rotating movement
Small friction coefficient, wear-resistance and stable dimensions
Superior corrosion resistance and good dimension stability
Not contaminate food, medicine and liquid medicament
Unlimited storage period
Can be adapted to the vast majority of fluid and chemicals
No crawling for precise control
Be able to bear sharp temperature changes a Can be disinfected
Working Conditions
| Speed | Pressure Range | Temperature Range | Media | Available Diameter Range |
| 15m/s | 0~45MPa | -55℃ +260℃ | All liquids, chemicals and gas | 5-1500mm |
Installation Dimension
| Piston Lever Diameter | Groove Diameter | Groove Width | Radius | Height of Sam Allowance | Maximum Radial Clearance S | |||
| d h9 | DH9 | L+0.2 | r1 | h | 2 MPa | 10 MPa | 20 MPa | 40 Mpa |
| 3.0-9.9 | d+2.9 | 2.4 | 0.4 | 0.4 | 0.20 | 0.10 | 0.08 | 0.05 |
| 10.0-19.9 | d+4.5 | 3.6 | 0.4 | 0.6 | 0.25 | 0.15 | 0.10 | 0.07 |
| 20.0-39.9 | d+6.2 | 4.8 | 0.6 | 0.7 | 0.35 | 0.20 | 0.15 | 0.08 |
| 40.0-119.9 | d+9.4 | 7.1 | 0.8 | 0.8 | 0.50 | 0.25 | 0.20 | 0.10 |
| 120.0-630.0 | d+12.2 | 9.5 | 0.8 | 0.8 | 0.60 | 0.30 | 0.25 | 0.12 |
Specification Table
| Order No. | Piston Lever Diameter | Groove Diameter | Groove Width |
| dh9 | DH9 | L+0.2 | |
| MAIS-28-3 | 3 | 5.9 | 2.4 |
| MAIS-28-4 | 4 | 6.9 | 2.4 |
| MAIS-28-5 | 5 | 7.9 | 2.4 |
| MAIS-28-6 | 6 | 8.9 | 2.4 |
| MAIS-28-8 | 8 | 10.9 | 2.4 |
| MAIS-28-10 | 10 | 14.5 | 3.6 |
| MAIS-28-12 | 12 | 16.5 | 3.6 |
| MAIS-28-14 | 14 | 18.5 | 3.6 |
| MAIS-28-15 | 15 | 19.5 | 3.6 |
| MAIS-28-16 | 16 | 20.5 | 3.6 |
| MAIS-28-18 | 18 | 22.5 | 3.6 |
| MAIS-28-20 | 20 | 26.2 | 4.8 |
| MAIS-28-22 | 22 | 28.2 | 4.8 |
| MAIS-28-25 | 25 | 31.2 | 4.8 |
| MAIS-28-28 | 28 | 34.2 | 4.8 |
| MAIS-28-30 | 30 | 36.2 | 4.8 |
| MAIS-28-32 | 32 | 38.2 | 4.8 |
| MAIS-28-35 | 35 | 41.2 | 4.8 |
| MAIS-28-36 | 36 | 42.2 | 4.8 |
| MAIS-28-40 | 40 | 49.4 | 7.1 |
| MAIS-28-42 | 42 | 51.4 | 7.1 |
| MAIS-28-45 | 45 | 54.4 | 7.1 |
| MAIS-28-48 | 48 | 57.4 | 7.1 |
| MAIS-28-50 | 50 | 59.4 | 7.1 |
| MAIS-28-52 | 52 | 61.4 | 7.1 |
| MAIS-28-55 | 55 | 64.4 | 7.1 |
| MAIS-28-56 | 56 | 65.4 | 7.1 |
| MAIS-28-60 | 60 | 69.4 | 7.1 |
| MAIS-28-63 | 63 | 72.4 | 7.1 |
| MAIS-28-65 | 65 | 74.4 | 7.1 |
| MAIS-28-70 | 70 | 79.4 | 7.1 |
| Order No. | Piston Lever Diameter | Groove Diameter | Groove Width |
| dh9 | DH9 | L+0.2 | |
| MAIS-28-75 | 75 | 84.4 | 7.1 |
| MAIS-28-80 | 80 | 89.4 | 7.1 |
| MAIS-28-85 | 85 | 94.4 | 7.1 |
| MAIS-28-90 | 90 | 99.4 | 7.1 |
| MAIS-28-95 | 95 | 104.4 | 7.1 |
| MAIS-28-100 | 100 | 109.4 | 7.1 |
| MAIS-28-105 | 105 | 114.4 | 7.1 |
| MAIS-28-110 | 110 | 119.4 | 7.1 |
| MAIS-28-115 | 115 | 124.4 | 7.1 |
| MAIS-28-120 | 120 | 132.2 | 9.5 |
| MAIS-28-125 | 125 | 137.2 | 9.5 |
| MAIS-28-130 | 130 | 142.2 | 9.5 |
| MAIS-28-135 | 135 | 147.2 | 9.5 |
| MAIS-28-140 | 140 | 152.2 | 9.5 |
| MAIS-28-150 | 150 | 162.2 | 9.5 |
| MAIS-28-160 | 160 | 172.2 | 9.5 |
| MAIS-28-170 | 170 | 182.2 | 9.5 |
| MAIS-28-180 | 180 | 192.2 | 9.5 |
| MAIS-28-190 | 190 | 202.2 | 9.5 |
| MAIS-28-200 | 200 | 212.2 | 9.5 |
| MAIS-28-210 | 210 | 222.2 | 9.5 |
| MAIS-28-220 | 220 | 232.2 | 9.5 |
| MAIS-28-230 | 230 | 242.2 | 9.5 |
| MAIS-28-240 | 240 | 252.2 | 9.5 |
| MAIS-28-250 | 250 | 262.2 | 9.5 |
| MAIS-28-280 | 280 | 292.2 | 9.5 |
| MAIS-28-300 | 300 | 312.2 | 9.5 |
| MAIS-28-320 | 320 | 332.2 | 9.5 |
| MAIS-28-350 | 350 | 362.2 | 9.5 |
| MAIS-28-360 | 360 | 372.2 | 9.5 |
| MAIS-28-400 | 400 | 412.2 | 9.5 |
