Static Seals
Product Application

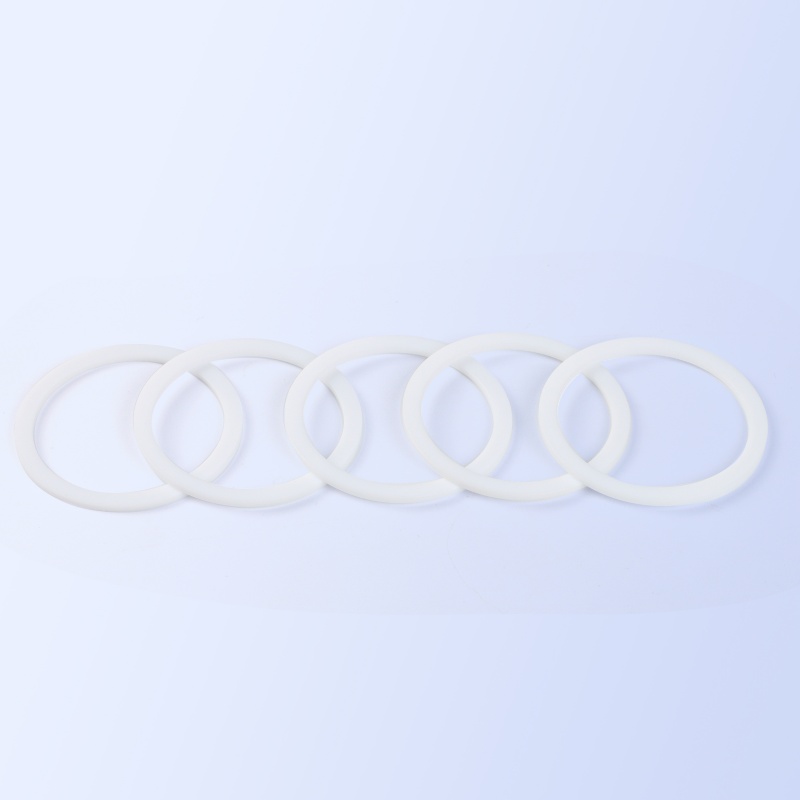

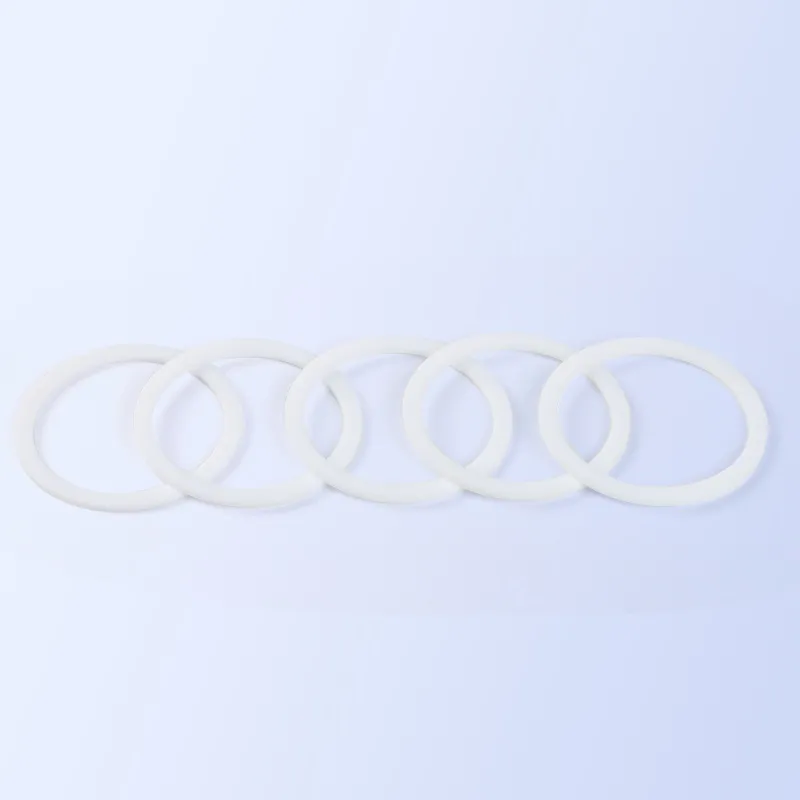

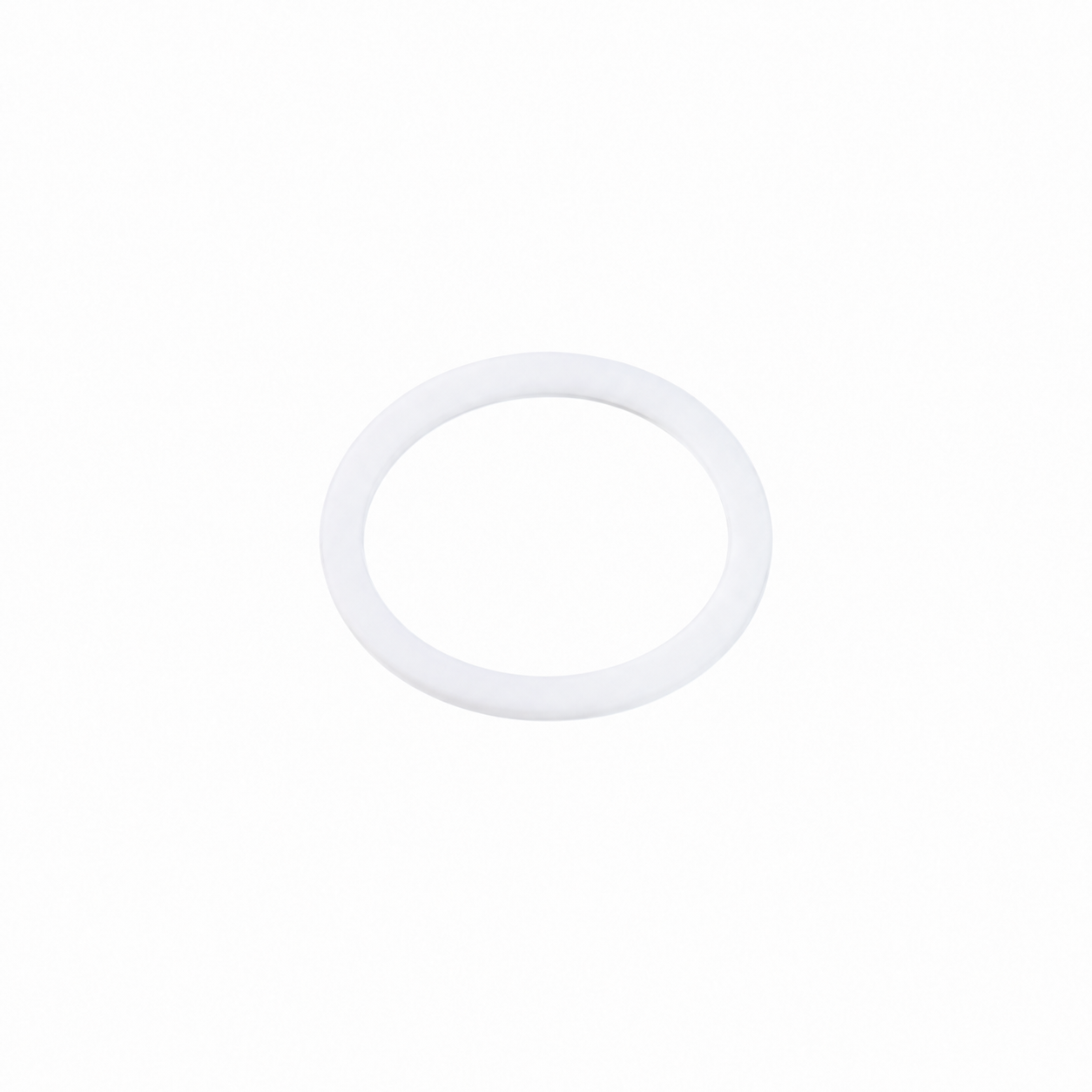

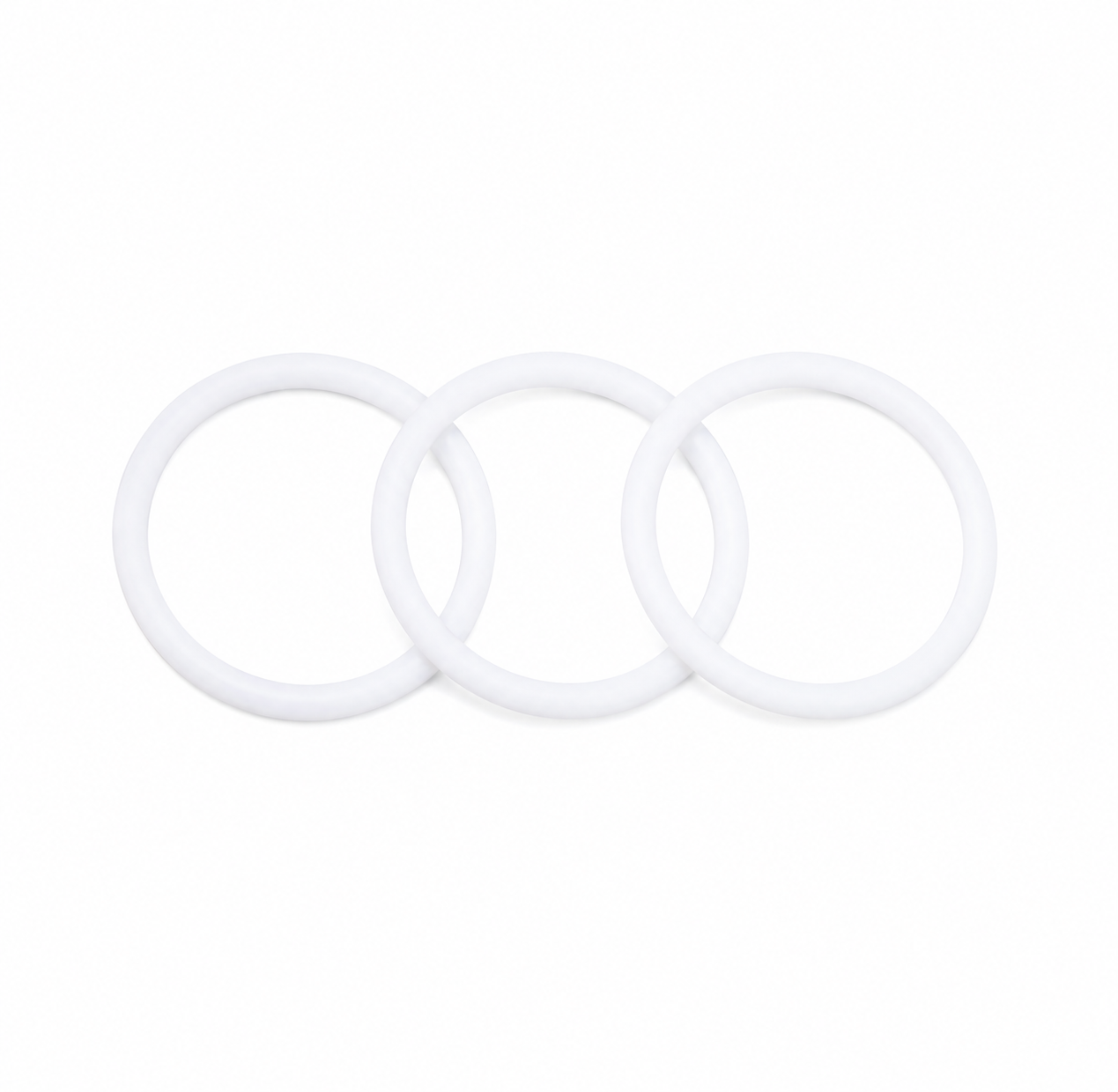

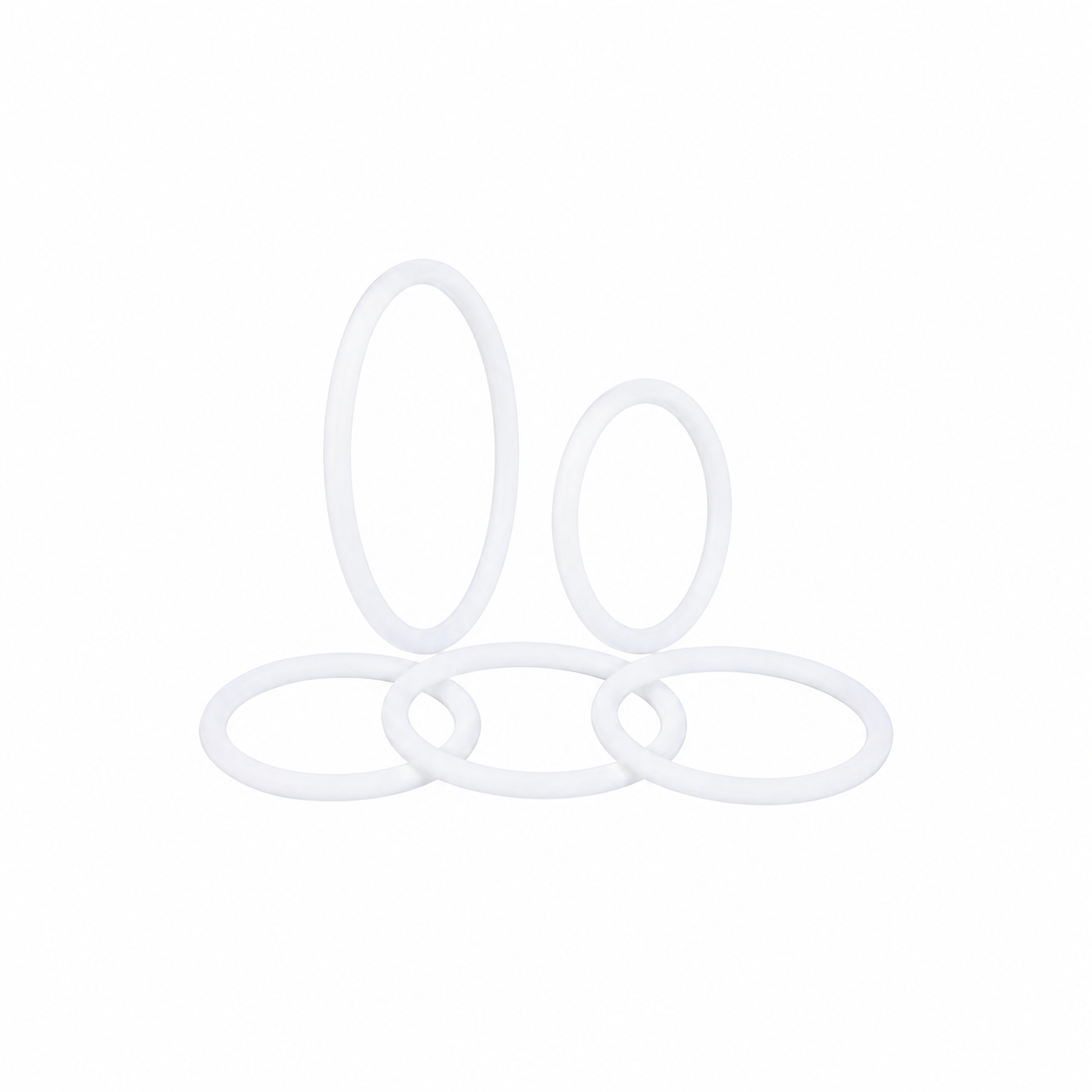

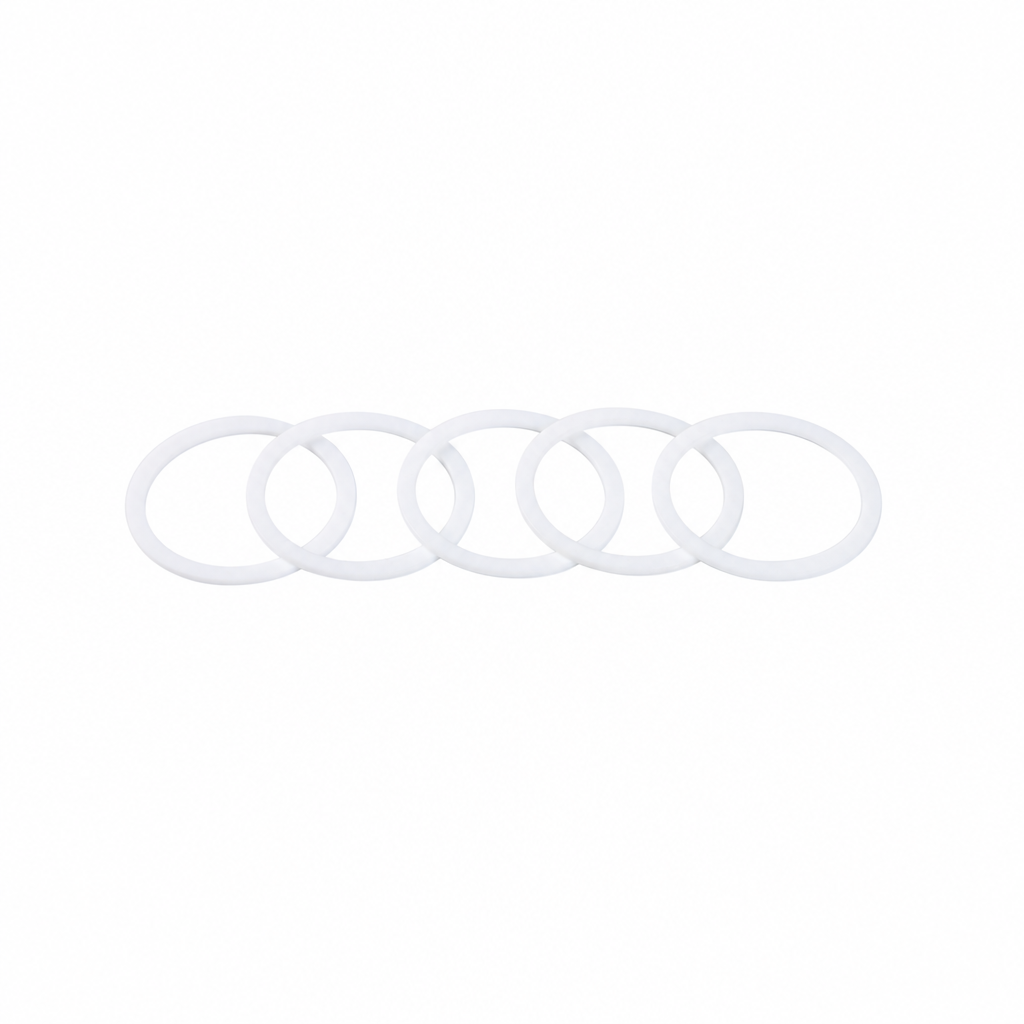

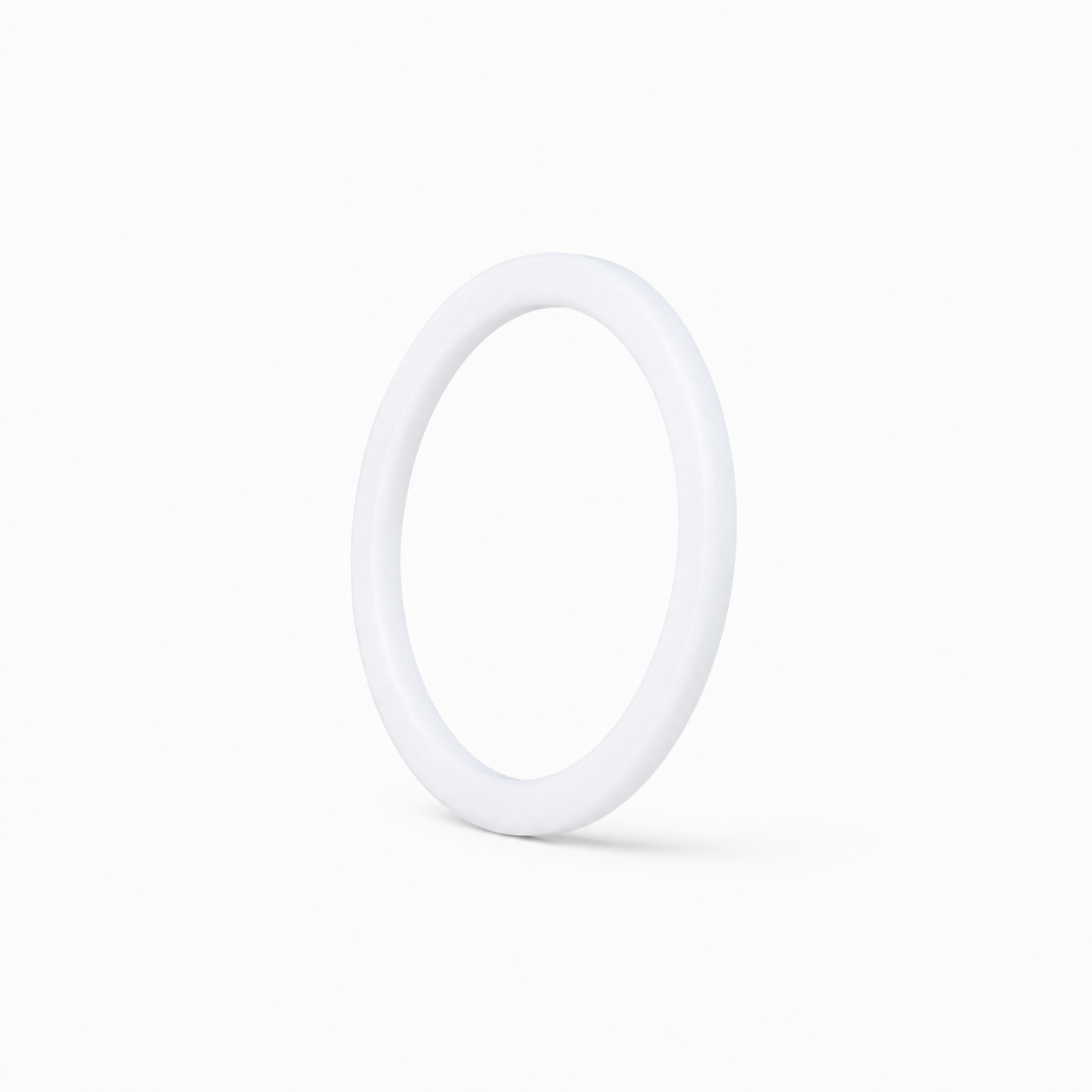

Cooperate with the YX-type sealing ring when the working pressure of oil cylinder is more than 1oMPa, or protecting the sealing ring when the oil cylinder is under pressure eccentrically.
Working Conditions
| Working Temperature | Working Pressure | Working Medium | Product Rigidity | Standard Source | Order Mark | Brief Notes |
| -40℃~+100℃ | ≤36MPa | Hydraulic oil, emulsion, and water | HS95±5A | Enterprise standard | MAIS-45-50 | Check ring d50(F₄, PA) |

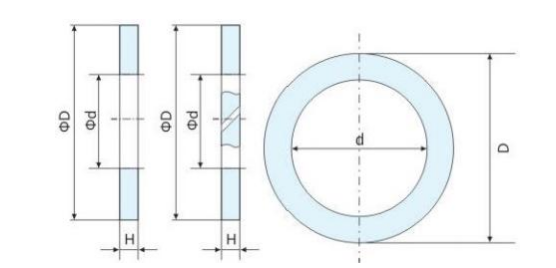

Specification Table
| Order No. | Nominal Outer Diameter | Check Ring | |||||
| D | d | H | |||||
| Basic dimension | Tolerance | Basic dimension | Tolerance | Basic dimension | Tolerance | ||
| MAIS-45-8 | 8 | 8 | 0.05 | 14 | -0.2 | 1.5 | ±0.2 |
| MAIS-45-10 | 10 | 10 | 0.05 | 16 | -0.2 | 1.5 | ±0.2 |
| MAIS-45-12 | 12 | 12 | 0.05 | 18 | -0.2 | 1.5 | ±0.2 |
| MAIS-45-14 | 14 | 14 | 0.05 | 20 | -0.2 | 1.5 | ±0.2 |
| MAIS-45-16 | 16 | 16 | 0.05 | 22 | -0.2 | 1.5 | ±0.2 |
| MAIS-45-18 | 18 | 18 | 0.05 | 24 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-20 | 20 | 20 | 0.05 | 26 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-22 | 22 | 22 | 0.05 | 28 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-22 | 22 | 22 | 0.05 | 30 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-25 | 25 | 25 | 0.05 | 31 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-28 | 28 | 28 | 0.05 | 34 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-30 | 30 | 30 | 0.05 | 38 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-32 | 32 | 32 | 0.08 | 40 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-35 | 35 | 35 | 0.08 | 43 | -0.05 | 1.5 | ±0.1 |
| MAIS-45-36 | 36 | 36 | 0.08 | 44 | -0.05 | 2 | ±0.1 |
| MAIS-45-40 | 40 | 40 | 0.08 | 48 | -0.05 | 2 | ±0.1 |
| MAIS-45-45 | 45 | 45 | 0.08 | 53 | -0.05 | 2 | ±0.1 |
| MAIS-45-50 | 50 | 50 | 0.08 | 58 | -0.12 | 2 | ±0.1 |
| MAIS-45-55 | 55 | 55 | 0.08 | 63 | -0.12 | 2 | ±0.1 |
| MAIS-45-56 | 56 | 56 | 0.08 | 64 | -0.12 | 2 | ±0.15 |
| MAIS-45-60 | 60 | 60 | 0.08 | 72 | -0.12 | 2 | ±0.15 |
| MAIS-45-63 | 63 | 63 | 0.08 | 75 | -0.12 | 2 | ±0.15 |
| MAIS-45-65 | 65 | 65 | 0.08 | 77 | -0.12 | 2 | ±0.15 |
| MAIS-45-70 | 70 | 70 | 0.08 | 82 | -0.12 | 2 | ±0.15 |
| MAIS-45-72 | 72 | 72 | 0.08 | 84 | -0.12 | 2 | ±0.15 |
| MAIS-45-75 | 75 | 75 | 0.08 | 87 | -0.12 | 2 | ±0.15 |
| MAIS-45-80 | 80 | 80 | 0.08 | 92 | -0.12 | 2 | ±0.15 |
| MAIS-45-86 | 86 | 86 | 0.08 | 98 | -0.12 | 2 | ±0.15 |
| MAIS-45-88 | 88 | 88 | 0.08 | 100 | -0.12 | 2 | ±0.15 |
| MAIS-45-90 | 90 | 90 | 0.08 | 102 | -0.12 | 2 | ±0.15 |
| MAIS-45-95 | 95 | 95 | 0.08 | 107 | -0.12 | 2 | ±0.15 |
| MAIS-45-100 | 100 | 100 | 0.08 | 112 | -0.12 | 2 | ±0.15 |
| MAIS-45-105 | 105 | 105 | 0.08 | 117 | -0.12 | 2 | ±0.15 |
| MAIS-45-110 | 110 | 110 | 0.08 | 122 | -0.12 | 2 | ±0.15 |
| MAIS-45-120 | 120 | 120 | 0.08 | 132 | -0.12 | 2 | ±0.15 |
| MAIS-45-125 | 125 | 125 | 0.08 | 137 | -0.2 | 2 | ±0.15 |
| MAIS-45-130 | 130 | 130 | 0.08 | 142 | -0.2 | 2 | ±0.15 |
| MAIS-45-140 | 140 | 140 | 0.08 | 152 | -0.2 | 2 | ±0.15 |
| MAIS-45-145 | 145 | 145 | 0.08 | 157 | -0.2 | 2 | ±0.15 |
| MAIS-45-150 | 150 | 150 | 0.08 | 162 | -0.2 | 2 | ±0.2 |
| MAIS-45-160 | 160 | 160 | 0.08 | 172 | -0.2 | 2 | ±0.2 |
| MAIS-45-170 | 170 | 170 | 0.1 | 186 | -0.2 | 2.5 | ±0.2 |
| MAIS-45-180 | 180 | 180 | 0.1 | 196 | -0.2 | 2.5 | ±0.2 |
| MAIS-45-190 | 190 | 190 | 0.1 | 206 | -0.2 | 2.5 | ±0.2 |
| MAIS-45-200 | 200 | 200 | 0.1 | 216 | -0.2 | 2.5 | ±0.2 |
| MAIS-45-210 | 210 | 210 | 0.1 | 226 | -0.2 | 2.5 | ±0.2 |
| MAIS-45-220 | 220 | 220 | 0.1 | 236 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-235 | 235 | 235 | 0.1 | 251 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-240 | 240 | 240 | 0.1 | 256 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-250 | 250 | 250 | 0.1 | 266 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-260 | 260 | 260 | 0.1 | 276 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-280 | 280 | 280 | 0.1 | 296 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-300 | 300 | 300 | 0.1 | 316 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-320 | 320 | 320 | 0.15 | 344 | -0.25 | 3 | ±0.15 |
| MAIS-45-340 | 340 | 340 | 0.15 | 364 | -0.25 | 3 | ±0.15 |
| MAIS-45-360 | 360 | 360 | 0.15 | 384 | -0.25 | 3 | ±0.15 |
| MAIS-45-380 | 380 | 380 | 0.15 | 404 | -0.25 | 3 | ±0.15 |
| MAIS-45-400 | 400 | 400 | 0.15 | 424 | -0.25 | 3 | ±0.15 |
| MAIS-45-420 | 420 | 420 | 0.15 | 444 | -0.25 | 3 | ±0.15 |
| MAIS-45-450 | 450 | 450 | 0.15 | 474 | -0.25 | 3 | ±0.15 |
| MAIS-45-500 | 500 | 500 | 0.15 | 524 | -0.25 | 3 | ±0.15 |
| MAIS-45-560 | 560 | 560 | 0.15 | 584 | -0.25 | 3 | ±0.15 |
| MAIS-45-600 | 600 | 600 | 0.15 | 624 | -0.25 | 3 | ±0.15 |
| MAIS-45-630 | 630 | 630 | 0.15 | 654 | -0.25 | 3 | ±0.15 |
| MAIS-45-650 | 650 | 650 | 0.15 | 674 | -0.25 | 3 | ±0.15 |
| MAIS-45-105×8 | 105 | 105 | 0.08 | 121 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-110×8 | 110 | 110 | 0.08 | 126 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-120×8 | 120 | 120 | 0.08 | 136 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-125×8 | 125 | 125 | 0.08 | 141 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-130×8 | 130 | 130 | 0.08 | 146 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-140×8 | 140 | 140 | 0.08 | 156 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-145×8 | 145 | 145 | 0.08 | 161 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-150×8 | 150 | 150 | 0.08 | 166 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-155×8 | 155 | 155 | 0.08 | 171 | -0.2 | 2.5 | ±0.15 |
| MAIS-45-160×8 | 160 | 160 | 0.08 | 176 | -0.2 | 2.5 | ±0.15 |
