Wiper Seals

Wiper Seals

Home > Products > Hydraulic Seals > Wiper Seals

Hydraulic Seals

Guiding Elements and Guiding Tapes

Wiper Seals

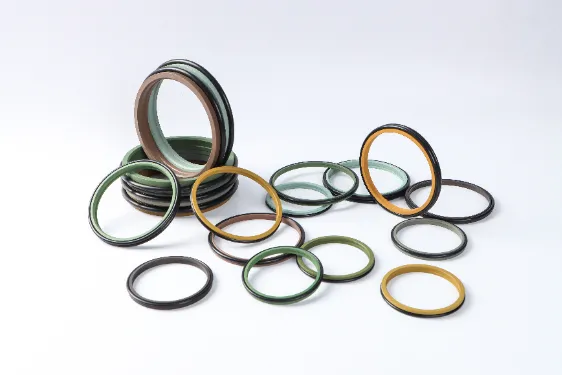

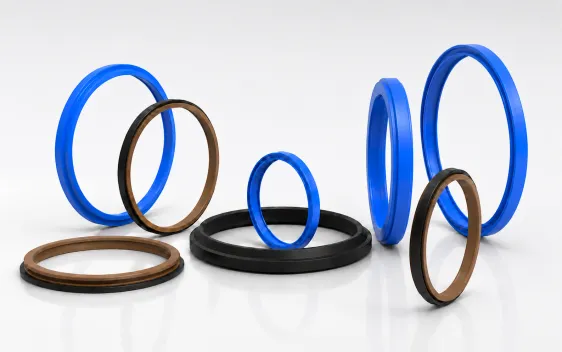

Scrapers or wipers are vital to optimize the performance of hydraulic cylinders. They scrape dirt, foreign particles, chips or moisture from the piston rods as they retract into the system. A hydraulic wiper or scraper prevents contamination of the hydraulic medium that could damage wear rings, seals and other components.

Wiper Seals
Prodoucts List

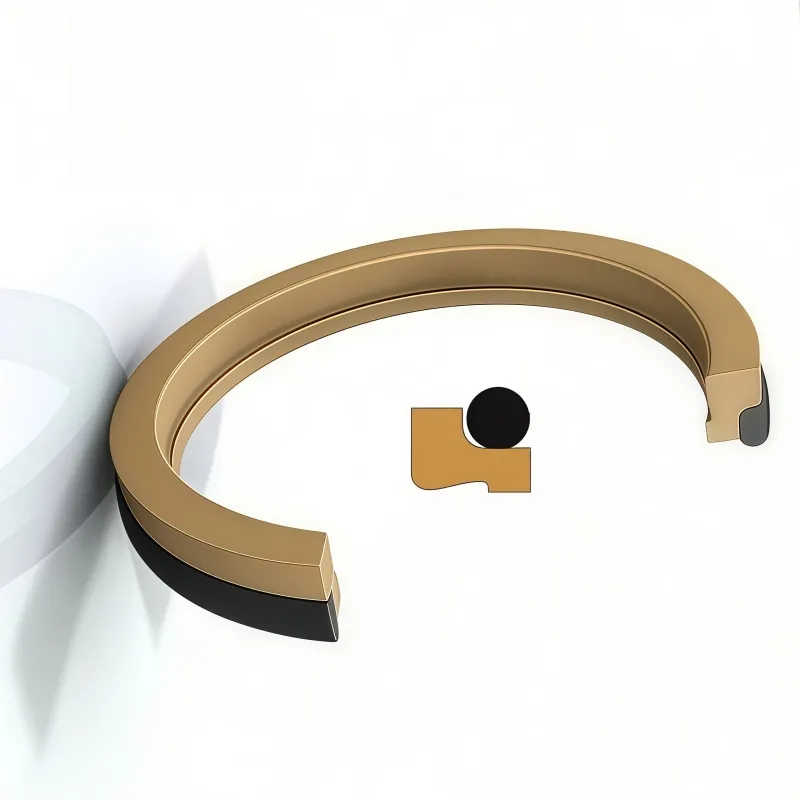

GSZ2 Wiper Seal
GSZ2 Wiper Seal

GSZ2 Wiper Seal

Max pressure

Temp range

-30℃ +200℃

Max speed

5m/s

GSZ2 Wiper Seal is designed for hydraulic and pneumatic cylinder rods in dusty, cold or high-frequency applications. Its double-lip PTFE profile removes dirt from the rod while controlling the remaining oil film. The O-ring energizer maintains stable contact and reliable wiping performance.

GSZ2 Wiper Seal

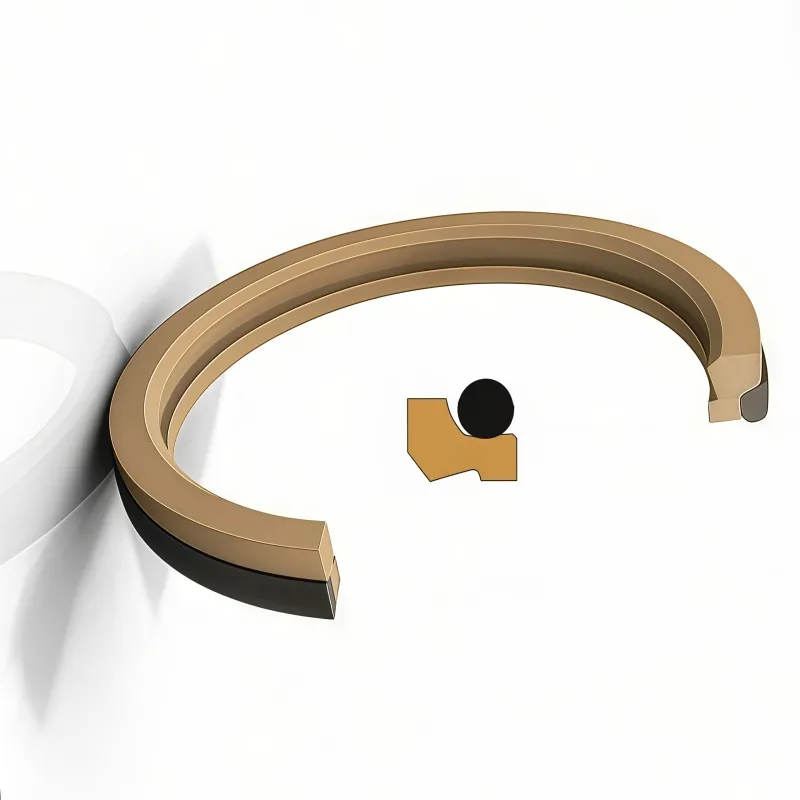

GSZ5 Wiper Seal
GSZ5 Wiper Seal

GSZ5 Wiper Seal

Max pressure

Temp range

-30℃ +200℃

Max speed

5m/s

The GSZ5 wiper seal is a double-acting, o-ring energized, rod wiper/excluder designed to include two different unique wiping lip geometries. The two lips combine to scrape debris from the rod and contain residual oil on rod extension, as well as allowing oil to pump back into the cylinder.

GSZ5 Wiper Seal

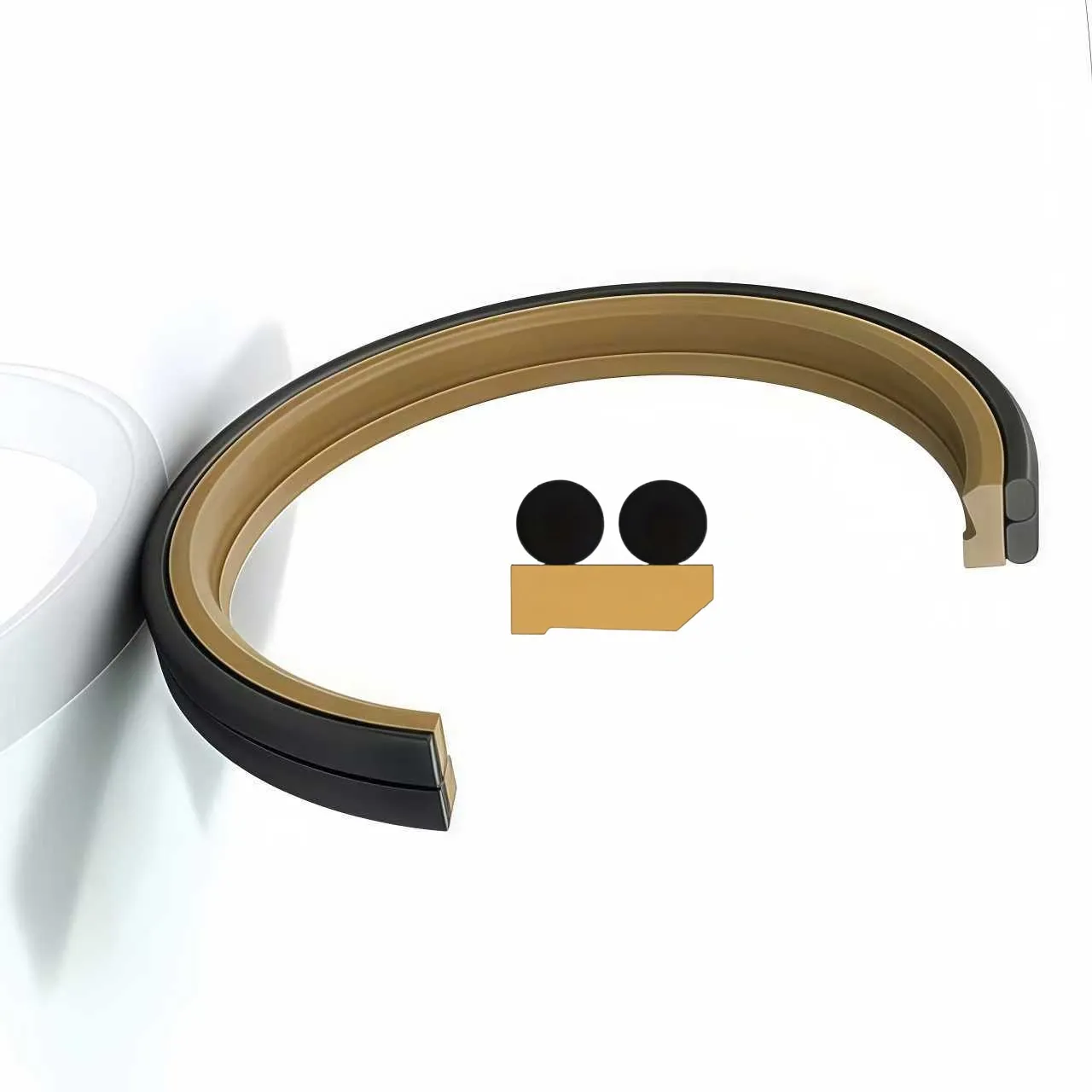

PT1 Wiper Seal
PT1 Wiper Seal

PT1 Wiper Seal

Max pressure

Temp range

-30℃ +200℃

Max speed

5m/s

PT1 Wiper Seal is a three-piece hydraulic cylinder wiper with a PTFE profile ring and two O-ring energizers. Its wiping edge removes external contaminants, while the sealing edge improves system sealing. The low-friction design supports smooth, reliable reciprocating motion.

PT1 Wiper Seal

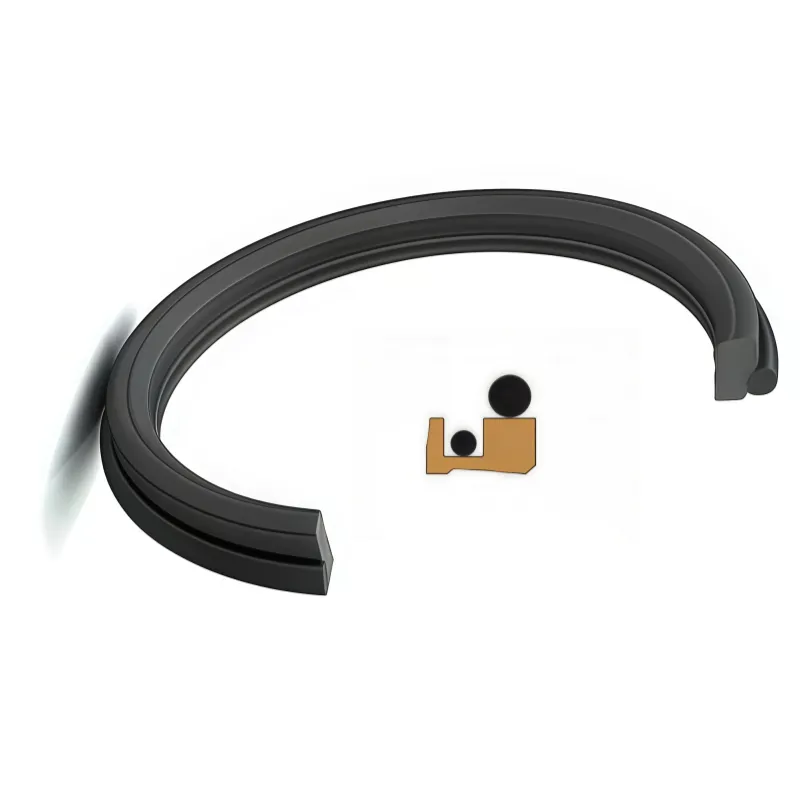

PT2 Wiper Seal
PT2 Wiper Seal

PT2 Wiper Seal

Max pressure

Temp range

-30℃ +200℃

Max speed

5m/s

PT2 Wiper Seal is a double acting hydraulic wiper designed for heavy duty applications. Its PTFE profile ring and dual O-ring design provide excellent dirt exclusion, low friction and stable wiping performance. Suitable for presses, steel equipment and large hydraulic cylinders.

PT2 Wiper Seal
