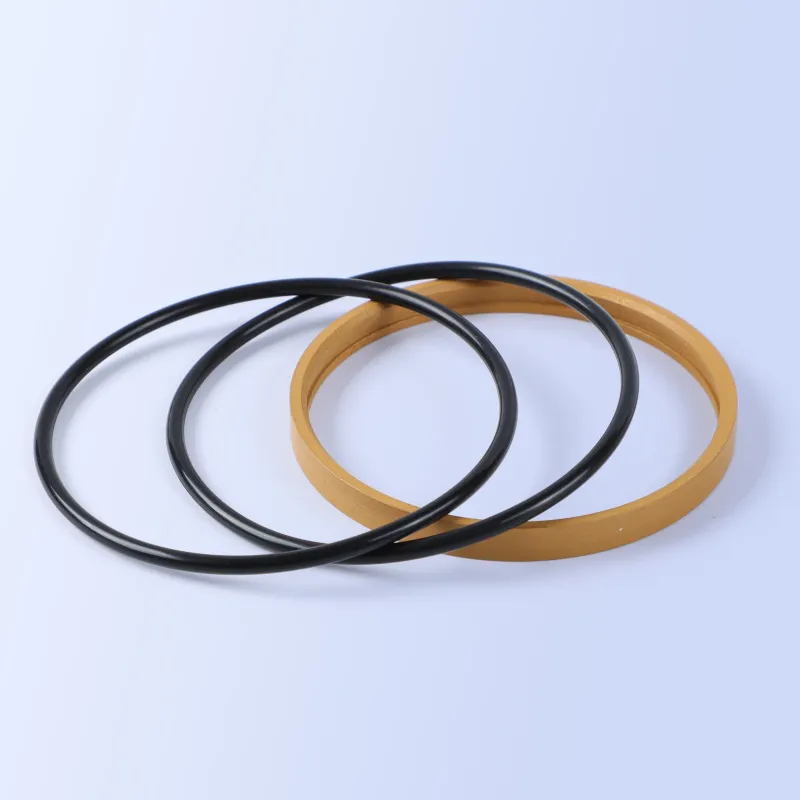

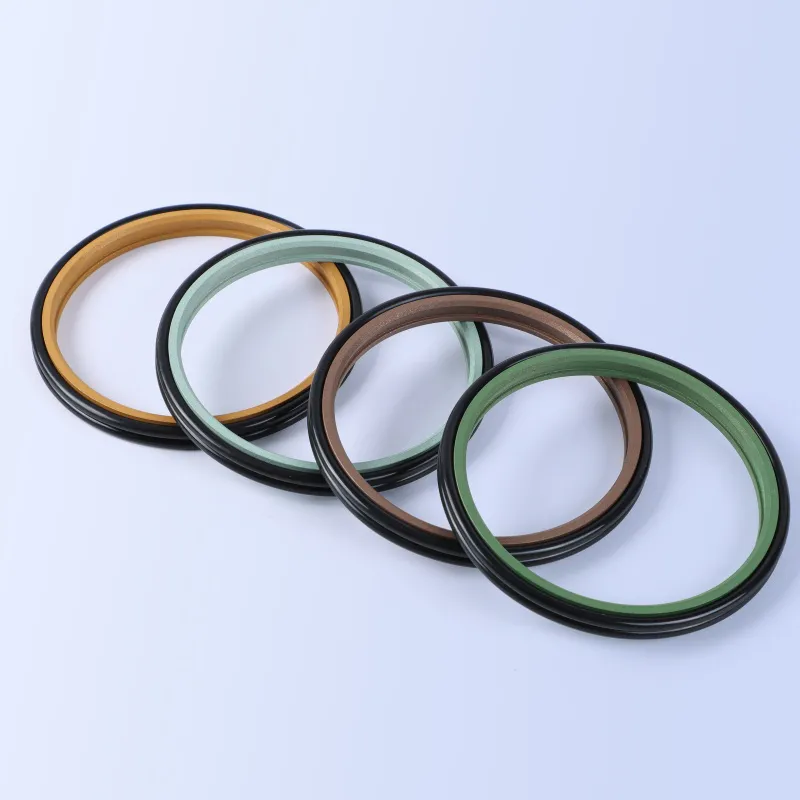

Wiper Seals

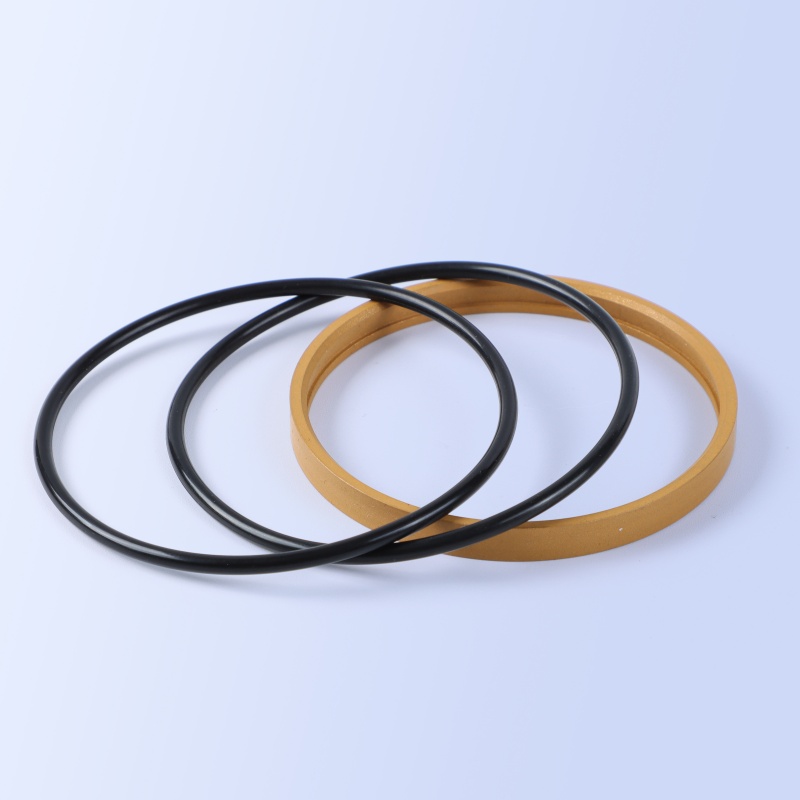

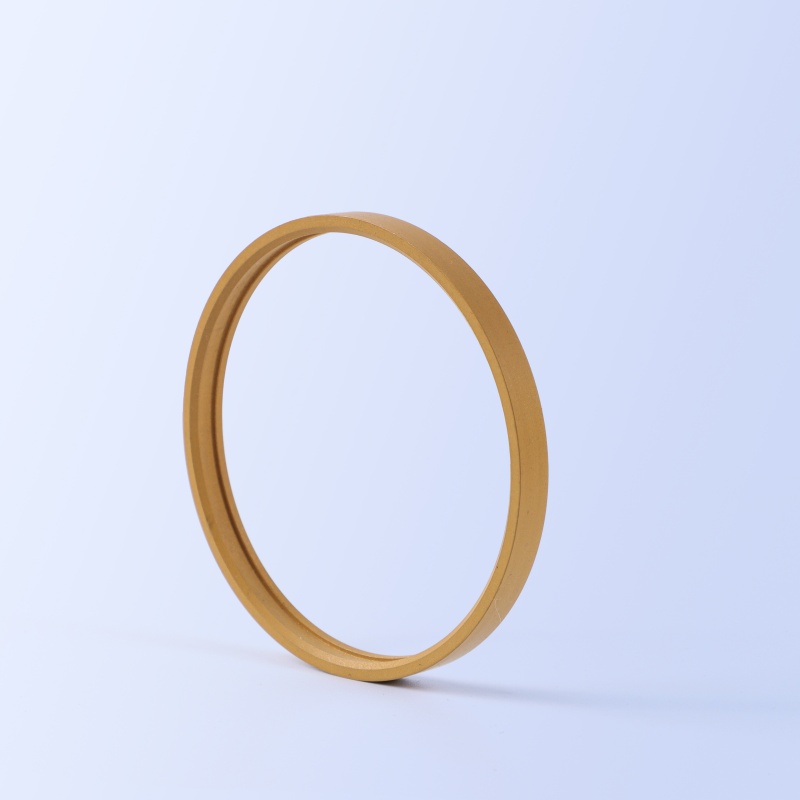

Sealing ring: F-PTFE
Elastomer: NBR or FKM
Share:
Application Range

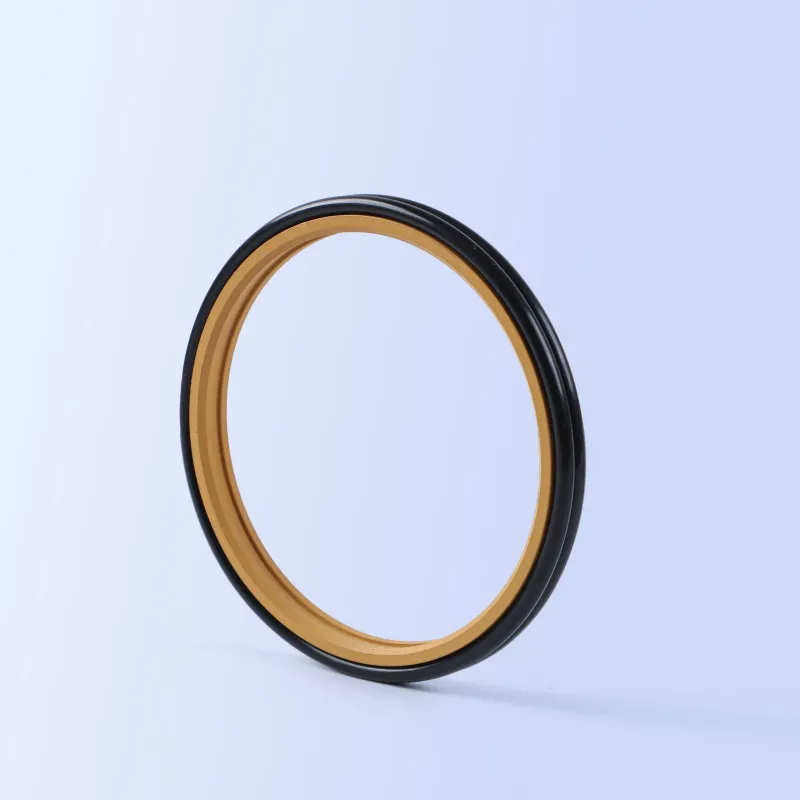

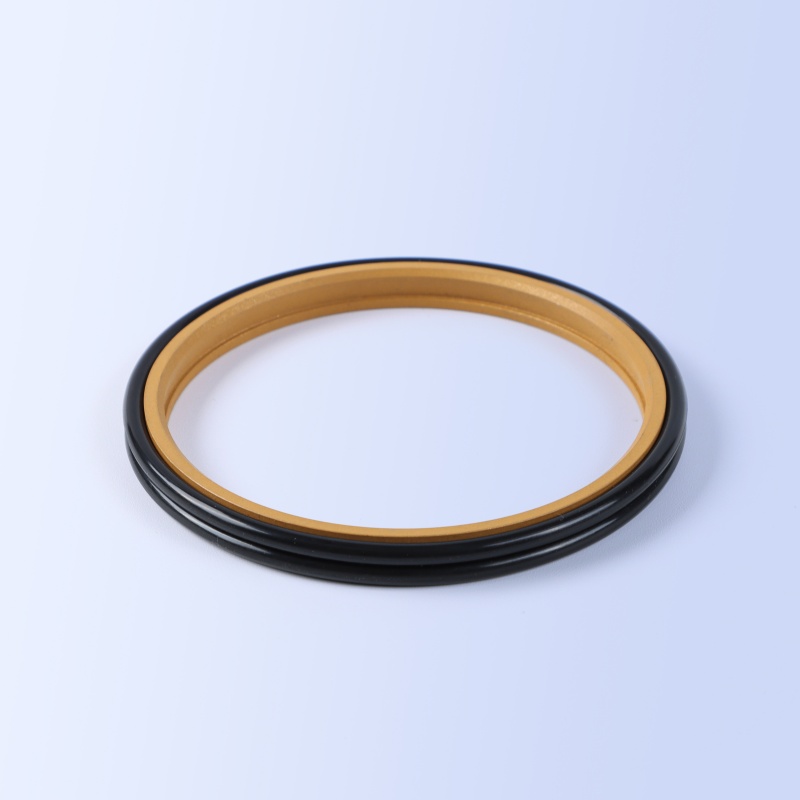

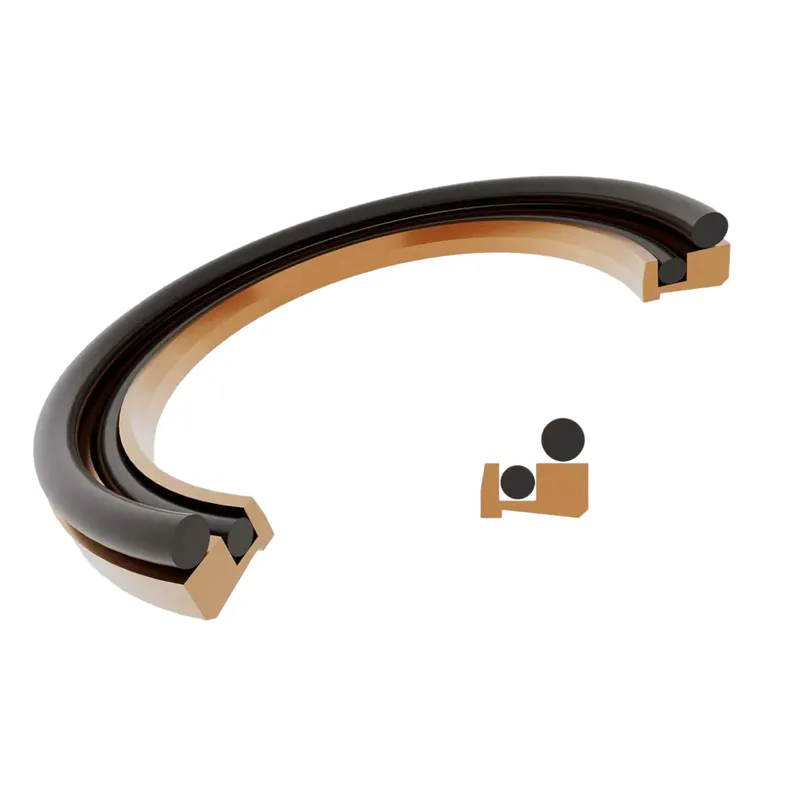

Composed of a special shaped ring with sealing and dust-proof cutting edges and two O-rings, the JPT1 dust-proof ring is used for improving the integral sealing; it has the characteristics of low friction with no stick-slip phenomena and possesses excellent capability of adjustment and positioning. JPT1 can apply to agricultural machinery, hydraulic machines, injection molding machines, hydraulic control systems, forklifts, cranes, rolling and loading, unloading machines, etc.
Please refer to the standards of WEMHF series of Trellebrg Company and PT1 series of Merker Company when designing and selecting.
Features
Double lip dust-proof ring can be used to improve the integral sealing
Features excellent capability of adjustment and positioning during working
Low friction and viscous friction
Features high reliability and can accept full load working pressure in short time
Working Conditions
| Speed | Pressure Range | Temperature Range | Media | Available Diameter Range |
| 5m/s | -30℃ +200℃ | Petroleum base hydraulic oil, fire-resistant hydraulic fluid, environmentally-safe hydraulic oil (biological oil), water and others | 20-2000mm |

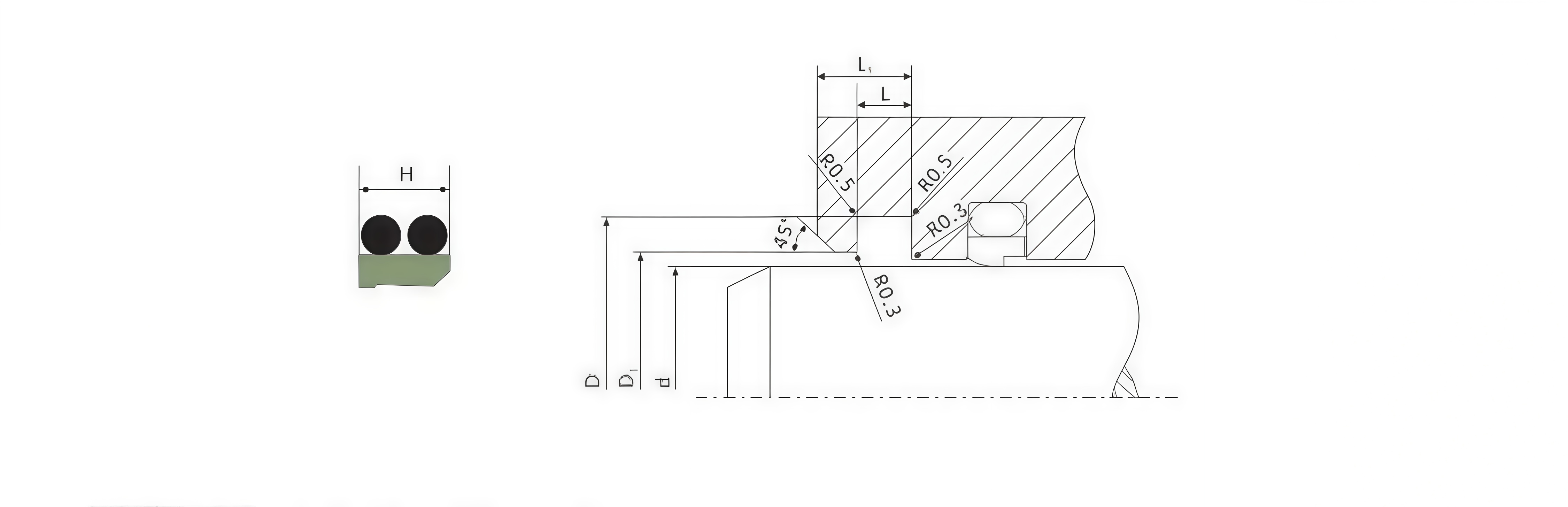

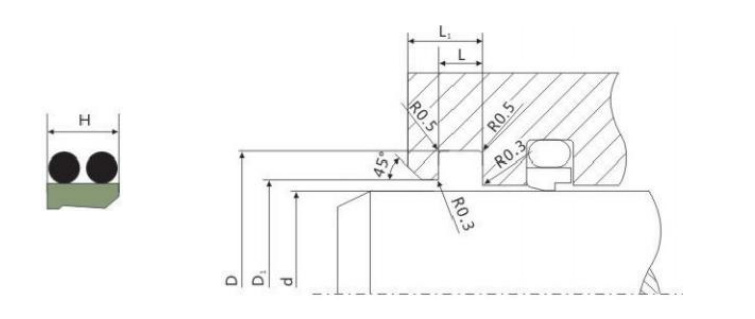

Installation Dimension
| Shaft Diameter | Groove Diameter | Groove Width | Platform Diameter | Guiding Length | Fillet |
| d f8 | DH9 | L+0.2 | D₁ ±0.1 | L₁ | r |
| 20-39.9 | d+7.6 | 4.2 | d+1.0 | 8.2 | 0.4 |
| 40-69.9 | d+8.8 | 6.3 | d+1.5 | 10.3 | 1.2 |
| 70-139.9 | d+12.2 | 8.1 | d+2.0 | 12.1 | 2.0 |
| 140-399.9 | d+16.0 | 11.5 | d+2.0 | 15.5 | 2.0 |
| 400-649.9 | d+24.0 | 15.5 | d+2.5 | 19.5 | 2.0 |
| 650-999.9 | d+27.3 | 18.0 | d+2.5 | 23.0 | 2.0 |
Specification Table
| Order No. | d f8 | DH9 | H | L+0.2 |
| MAIS-26-20 | 20 | 27.6 | 4.0 | 4.2 |
| MAIS-26-25 | 25 | 32.6 | 4.0 | 4.2 |
| MAIS-26-28 | 28 | 35.6 | 4.0 | 4.2 |
| MAIS-26-30 | 30 | 37.6 | 4.0 | 4.2 |
| MAIS-26-32 | 32 | 39.6 | 4.0 | 4.2 |
| MAIS-26-35 | 35 | 42.6 | 4.0 | 4.2 |
| MAIS-26-36 | 36 | 43.6 | 4.0 | 4.2 |
| MAIS-26-40 | 40 | 48.8 | 6.0 | 6.3 |
| MAIS-26-42 | 42 | 50.8 | 6.0 | 6.3 |
| MAIS-26-45 | 45 | 53.8 | 6.0 | 6.3 |
| MAIS-26-50 | 50 | 58.8 | 6.0 | 6.3 |
| MAIS-26-55 | 55 | 63.8 | 6.0 | 6.3 |
| MAIS-26-56 | 56 | 64.8 | 6.0 | 6.3 |
| MAIS-26-60 | 60 | 68.8 | 6.0 | 6.3 |
| MAIS-26-63 | 63 | 71.8 | 6.0 | 6.3 |
| MAIS-26-65 | 65 | 73.8 | 6.0 | 6.3 |
| MAIS-26-70 | 70 | 82.2 | 7.7 | 8.1 |
| MAIS-26-75 | 75 | 87.2 | 7.7 | 8.1 |
| MAIS-26-80 | 80 | 92.2 | 7.7 | 8.1 |
| MAIS-26-85 | 85 | 97.2 | 7.7 | 8.1 |
| MAIS-26-90 | 90 | 102.2 | 7.7 | 8.1 |
| MAIS-26-100 | 100 | 112.2 | 7.7 | 8.1 |
| MAIS-26-110 | 110 | 122.2 | 7.7 | 8.1 |
| MAIS-26-115 | 115 | 127.2 | 7.7 | 8.1 |
| MAIS-26-120 | 120 | 132.2 | 7.7 | 8.1 |
| MAIS-26-125 | 125 | 137.2 | 7.7 | 8.1 |
| MAIS-26-130 | 130 | 142.2 | 7.7 | 8.1 |
| MAIS-26-140 | 140 | 156 | 11.0 | 11.5 |
| MAIS-26-150 | 150 | 166 | 11.0 | 11.5 |
| MAIS-26-160 | 160 | 176 | 11.0 | 11.5 |
| MAIS-26-170 | 170 | 186 | 11.0 | 11.5 |
| MAIS-26-180 | 180 | 196 | 11.0 | 11.5 |
| MAIS-26-200 | 200 | 216 | 11.0 | 11.5 |
| MAIS-26-220 | 220 | 236 | 11.0 | 11.5 |
| MAIS-26-230 | 230 | 246 | 11.0 | 11.5 |
| MAIS-26-240 | 240 | 256 | 11.0 | 11.5 |
| Order No. | d f8 | DH9 | H | L+0.2 |
| MAIS-26-245 | 245 | 261 | 11.0 | 11.5 |
| MAIS-26-250 | 250 | 266 | 11.0 | 11.5 |
| MAIS-26-260 | 260 | 276 | 11.0 | 11.5 |
| MAIS-26-280 | 280 | 296 | 11.0 | 11.5 |
| MAIS-26-290 | 290 | 306 | 11.0 | 11.5 |
| MAIS-26-300 | 300 | 316 | 11.0 | 11.5 |
| MAIS-26-320 | 320 | 336 | 11.0 | 11.5 |
| MAIS-26-340 | 340 | 356 | 11.0 | 11.5 |
| MAIS-26-355 | 355 | 371 | 11.0 | 11.5 |
| MAIS-26-360 | 360 | 376 | 11.0 | 11.5 |
| MAIS-26-370 | 370 | 386 | 11.0 | 11.5 |
| MAIS-26-375 | 375 | 391 | 11.0 | 11.5 |
| MAIS-26-380 | 380 | 396 | 11.0 | 11.5 |
| MAIS-26-390 | 390 | 406 | 11.0 | 11.5 |
| MAIS-26-400 | 400 | 424 | 14.8 | 15.5 |
| MAIS-26-410 | 410 | 434 | 14.8 | 15.5 |
| MAIS-26-420 | 420 | 444 | 14.8 | 15.5 |
| MAIS-26-430 | 430 | 454 | 14.8 | 15.5 |
| MAIS-26-440 | 440 | 464 | 14.8 | 15.5 |
| MAIS-26-450 | 450 | 474 | 14.8 | 15.5 |
| MAIS-26-460 | 460 | 484 | 14.8 | 15.5 |
| MAIS-26-470 | 470 | 494 | 14.8 | 15.5 |
| MAIS-26-480 | 480 | 504 | 14.8 | 15.5 |
| MAIS-26-500 | 500 | 524 | 14.8 | 15.5 |
| MAIS-26-510 | 510 | 534 | 14.8 | 15.5 |
| MAIS-26-520 | 520 | 544 | 14.8 | 15.5 |
| MAIS-26-530 | 530 | 554 | 14.8 | 15.5 |
| MAIS-26-540 | 540 | 564 | 14.8 | 15.5 |
| MAIS-26-560 | 560 | 584 | 14.8 | 15.5 |
| MAIS-26-590 | 590 | 614 | 14.8 | 15.5 |
| MAIS-26-600 | 600 | 624 | 14.8 | 15.5 |
| MAIS-26-620 | 620 | 644 | 14.8 | 15.5 |
| MAIS-26-690 | 690 | 717.3 | 17.2 | 18 |
| MAIS-26-760 | 760 | 787.3 | 17.2 | 18 |
| MAIS-26-800 | 800 | 827.3 | 17.2 | 18 |
| MAIS-26-900 | 900 | 927.3 | 17.2 | 18 |
