Rotary Seals

Home > Products > Hydraulic Seals > Rotary Seals

Rotary Seals

Rotary seals are designed for slow rotary applications, such as the hydraulic swivels, which allow the transmission of pressurised services between the chassis and body of mobile hydraulic equipment.

Prodoucts List

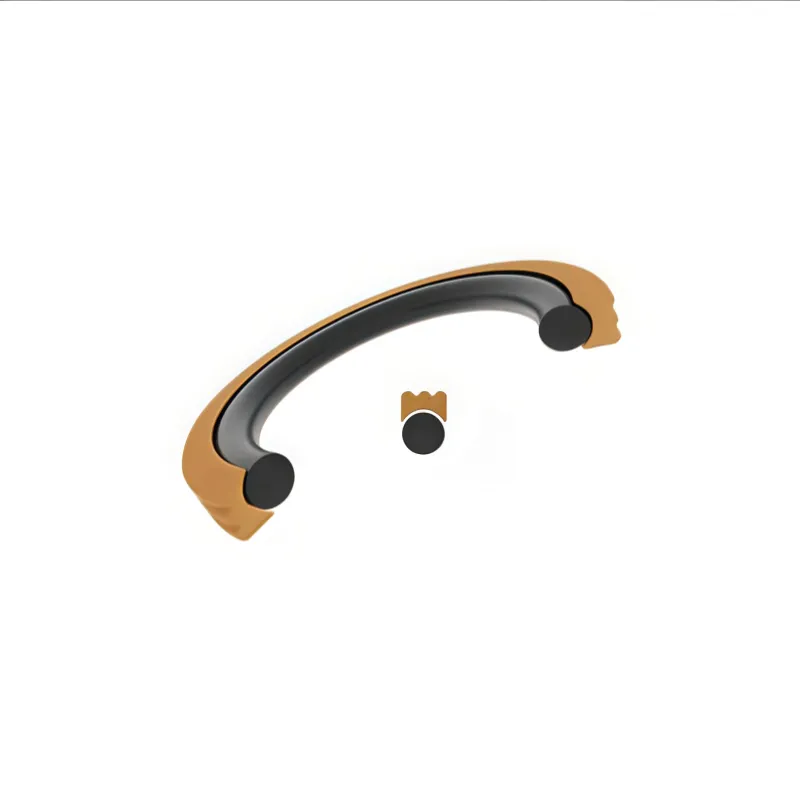

GNS Rotary Seal

Max pressure

30MPa

Temp range

-30℃ +200℃

Max speed

1m/s

The GNS rotary seal is a double-acting, o-ring energized, rotary swivel seal designed to be used to seal outer diameters of shafts, bores, swivels, and other applications with rotating or oscillating movement.

GNS Rotary Seal

Max pressure 30MPa

Temp range -30℃ to +200℃

Max speed 1m/s

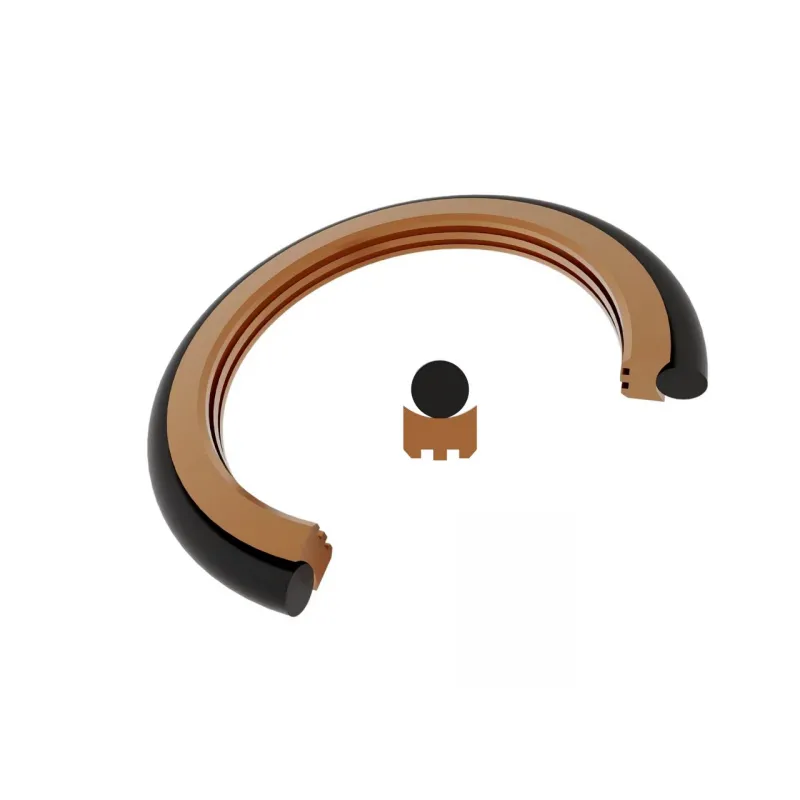

GRS Rotary Seal

Max pressure

30MPa

Temp range

-30℃ +200℃

Max speed

1m/s

The GRS rotary seal is a double-acting, o-ring energized, rotary swivel seal designed to be used to seal inner diameters of shafts, rods, swivels, and other applications with rotating or oscillating movement.

GRS Rotary Seal

Max pressure 30MPa

Temp range -30℃ to +200℃

Max speed 1m/s

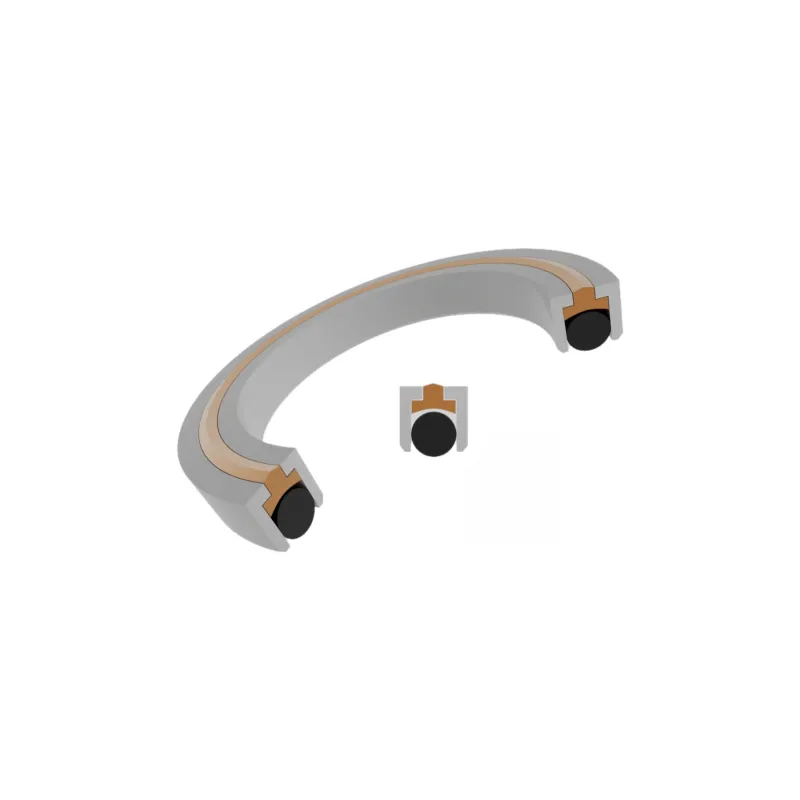

JRDA Rotary Seal

Max pressure

36MPa

Temp range

-36℃ +100℃

Max speed

0.5m/s

A filled PTFE seal ring, an energised O-Ring and two back-up rings compact seal. Special seal surface design to suit for high pressure and low viscosity. Concave back face design increases contact surface, prevents the seal ring rotating with the rod and shaft.

JRDA Rotary Seal

Max pressure 36MPa

Temp range -36℃ to +100℃

Max speed 0.5m/s

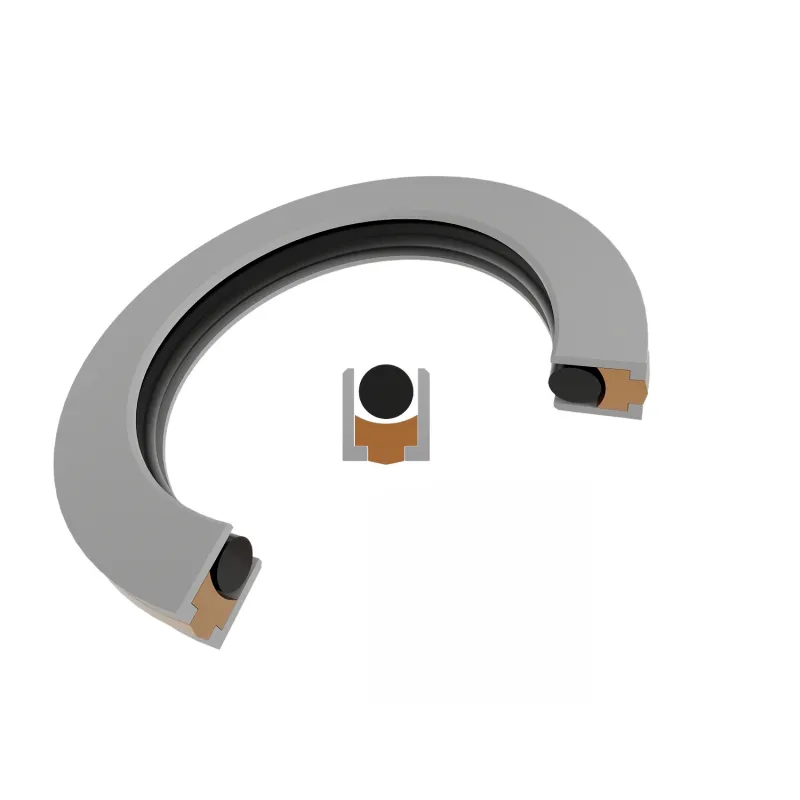

JRDI Rotary Seal

Max pressure

36MPa

Temp range

-36℃ +100℃

Max speed

0.5m/s

A filled PTFE seal ring, an energised O-Ring and two back-up rings compact seal. Special seal surface design to suit for high pressure and low viscosity.

JRDI Rotary Seal

Max pressure 36MPa

Temp range -36℃ to +100℃

Max speed 0.5m/s

Want to speak to us?

The quickest way to identify the best solution for your needs is to speak with one of our team of experts.
We'll be able to quickly narrow down your options and give you objective advice on the best fit.
