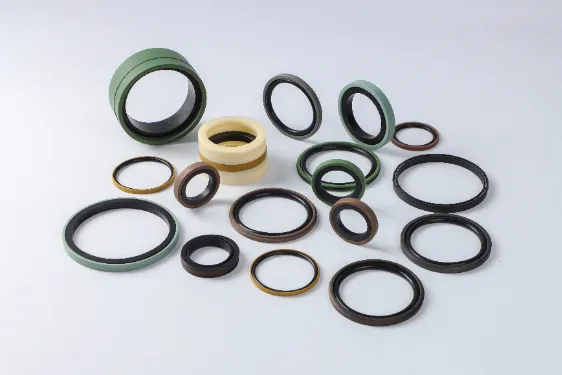

Piston Seals

Piston Seals

Home > Products > Hydraulic Seals > Piston Seals

Hydraulic Seals

Guiding Elements and Guiding Tapes

Piston Seals

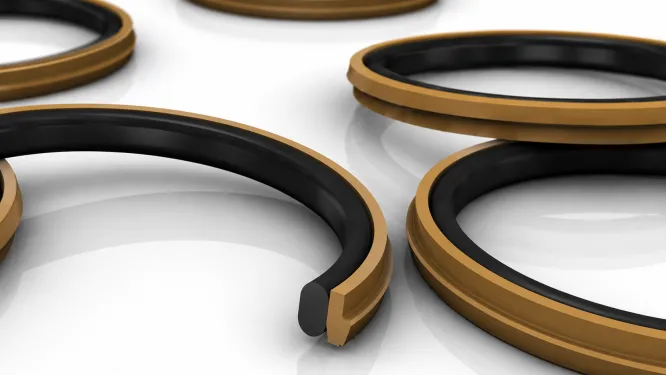

Piston seals or piston rings are used in hydraulic cylinders for fluid sealing. They are placed inside the cylinder head and seal against the cylinder bore, preventing fluid from flowing across the cylinder head. This allows pressure build-up on one side of the piston, making the cylinder extend or retract.

Piston Seals
Prodoucts List
KDAS Piston Seal
KDAS Piston Seal

KDAS Piston Seal

Max pressure

40MPa

Temp range

-35℃ +100℃

Max speed

0.5m/s

The KDAS double-acting piston seal in a robust five part assembly is designed specifically for one piece pistons in a wide range of medium duty applications. The seal is also suitable for two piece pistons.

KDAS Piston Seal

GSF Piston Seal
GSF Piston Seal

GSF Piston Seal

Max pressure

60MPa

Temp range

-30℃ +200℃

Max speed

5m/s

The GSF piston seals is a double-acting, o-ring energized, low-friction piston seal that performs well in both high- and low-pressure systems.

GSF Piston Seal

SPGW Piston Seal
SPGW Piston Seal

SPGW Piston Seal

Max pressure

50MPa

Temp range

-30℃ +100℃

Max speed

1.5m/s

A heavy duty compact double-acting piston seal, the SPGW piston Seal is an elastomer energized PTFE assembly. It gives stability, wear resistance, sealability, low friction and a maintenance-free long life. Back-up Rings are specially designed to protect the seal ring from extrusion, even in the most demanding applications.

SPGW Piston Seal

SPG Piston Seal
SPG Piston Seal

SPG Piston Seal

Max pressure

35MPa

Temp range

-30℃ +200℃

Max speed

1.5m/s

The SPG piston seal is a double-acting piston seal that performs well in both high- and low-pressure systems.

SPG Piston Seal

AQ2 Piston Seal
AQ2 Piston Seal

AQ2 Piston Seal

Max pressure

40MPa

Temp range

-30℃ +200℃

Max speed

2m/s

The AQ2 piston seal is a double-acting piston seal utilizing high-performance PTFE paired with an elastomer energizer and x-ring for optimum performance and durability.

AQ2 Piston Seal

AQ5 Piston Seal
AQ5 Piston Seal

AQ5 Piston Seal

Max pressure

60MPa

Temp range

-30℃ +200℃

Max speed

3m/s

The AQ5 piston seal is a double-acting piston seal utilizing high- performance PTFE paired with twin premium o-ring energizers and an x-ring for optimum performance and durability.

AQ5 Piston Seal

GNT Piston Seal
GNT Piston Seal

GNT Piston Seal

Max pressure

60MPa

Temp range

-30℃ +200℃

Max speed

5m/s

The GNT piston seal provides optimum leakage control and good resistance to extrusion. The seal is a double-acting O‑Ring energized piston seal for dynamic applications. Installed in grooves to ISO 7425, it has excellent friction characteristics with no stick-slip, minimal breakout force and high wear resistance.

GNT Piston Seal

GSD Piston StepSeal
GSD Piston StepSeal

GSD Piston StepSeal

Max pressure

60MPa

Temp range

-30℃ +200℃

Max speed

5m/s

The GSD piston step seal is a single-acting, o-ring energized, low-friction piston seal especially useful where smooth movement and location accuracy is required.

GSD Piston StepSeal

GSF-S Piston Seal
GSF-S Piston Seal

GSF-S Piston Seal

Max pressure

60MPa

Temp range

-30℃ +200℃

Max speed

5m/s

The GSF-S piston seal is a chamfered, double-acting piston seal that performs well in both high- and low-pressure systems.

GSF-S Piston Seal

OK Piston Seal
OK Piston Seal

OK Piston Seal

Max pressure

50MPa

Temp range

-30℃ +110℃

Max speed

1m/s

The OK double acting piston seal design, with a filled PTFE face ring, provides the designer with a compact, low friction seal for light to medium duty hydraulic cylinders.

OK Piston Seal

SPGC Piston Seal
SPGC Piston Seal

SPGC Piston Seal

Max pressure

35MPa

Temp range

-30℃ +200℃

Max speed

1.5m/s

The SPGC piston seal is a double-acting low-friction piston seal solution for compact o-ring grooves, that extends the service range above what an o-ring alone is capable of supporting.

SPGC Piston Seal

SPGO Piston Seal
SPGO Piston Seal

SPGO Piston Seal

Max pressure

35MPa

Temp range

-30℃ +200℃

Max speed

1.5m/s

The SPGO piston seal is a double-acting, o-ring energized, low-friction piston seal designed for low- and medium-pressure systems

SPGO Piston Seal

JDKK Piston Seal
JDKK Piston Seal

JDKK Piston Seal

Max pressure

45MPa

Temp range

-30℃ +200℃

Max speed

1m/s

Combined with a seal ring, an O-Ring, and two guide sleeves used for guiding and positioning. O-Ring provides pre-loaded force and compensates the abrasion to the seal ring. The seal ring and the bore produce a sealing effect by combining a dual surface. Double sealing for hydraulic cylinder pistons.

JDKK Piston Seal

JGDA Piston Seal
JGDA Piston Seal

JGDA Piston Seal

Max pressure

45MPa

Temp range

-30℃ +100℃

Max speed

1m/s

The JGDA seal consists of 4 parts, a sharp edged sealing ring of PTFE-Bronze compound, 2 L-shaped support rings of POM and an O-Ring as energiser.It can be used with mineral oils and in modified form with water base fluids, fire resistant fluids, and compressed air.

JGDA Piston Seal

JKDF Piston Seal
JKDF Piston Seal

JKDF Piston Seal

Max pressure

45MPa

Temp range

-30℃ +200℃

Max speed

1m/s

Combined with a seal ring, an O-Ring, and two guide sleeves used for guiding and positioning. O-Ring provides pre-loaded force and compensates the abrasion to the seal ring. The seal ring and the bore produce a sealing effect by combining a dual surface. Double sealing for hydraulic cylinder pistons.

JKDF Piston Seal
